OVERVIEW

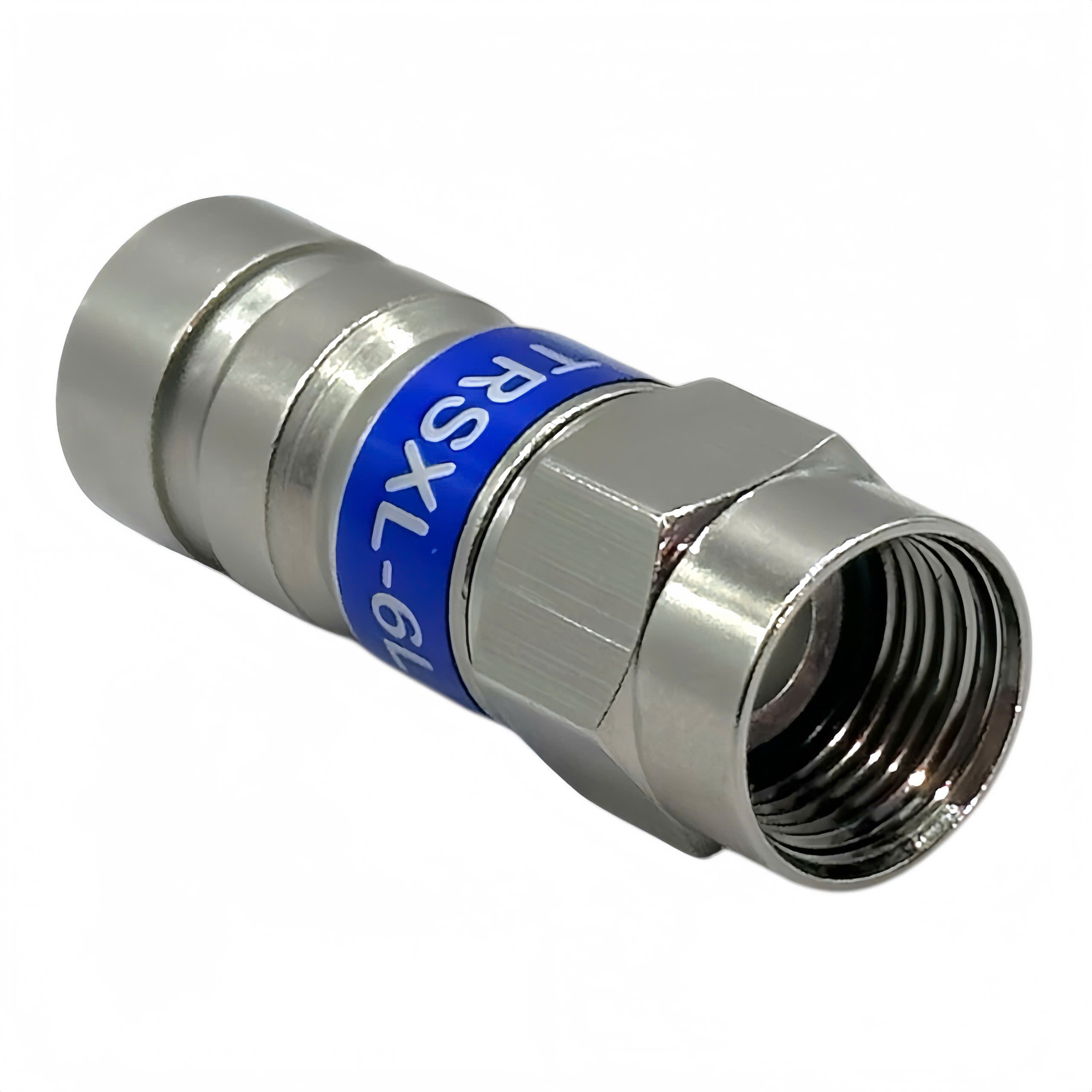

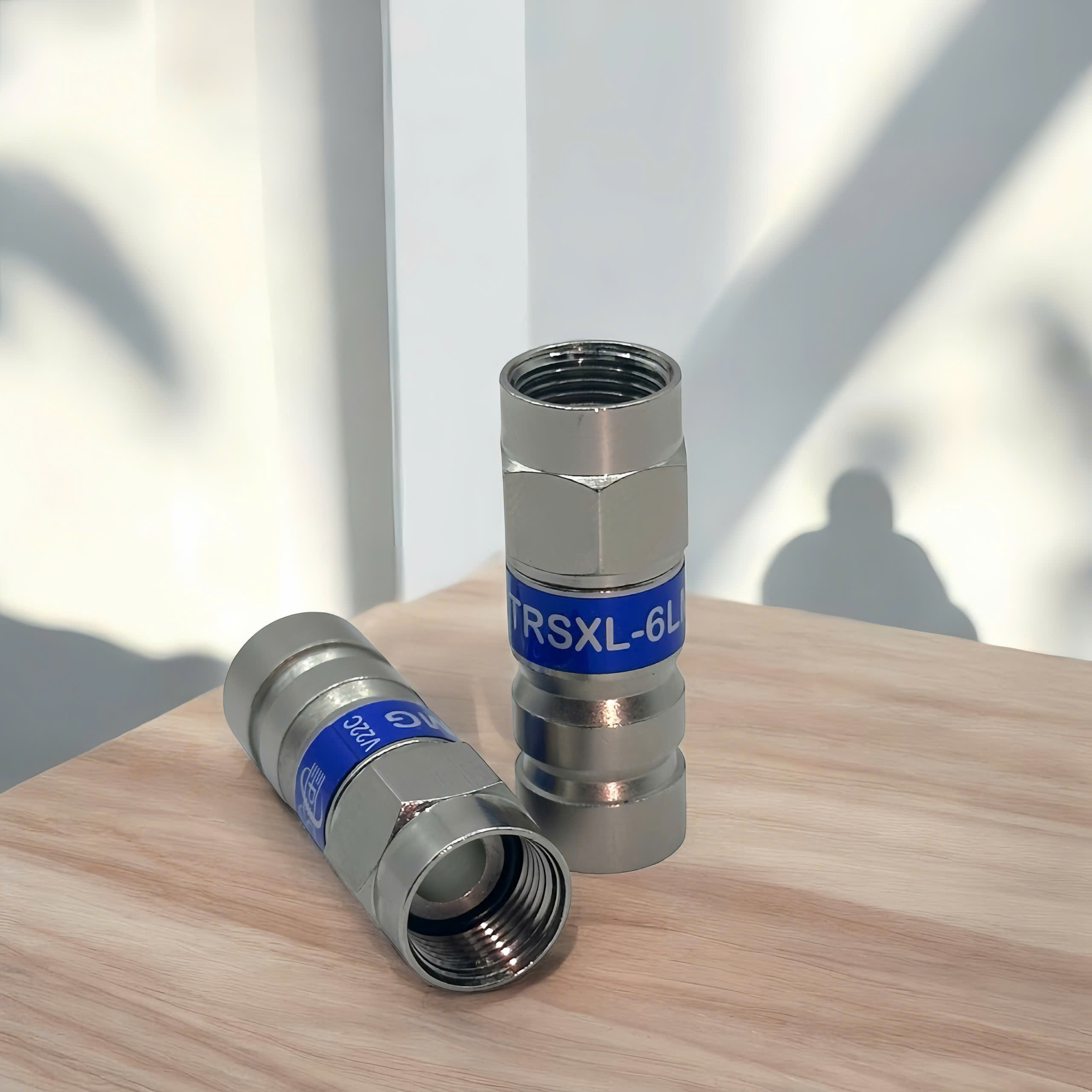

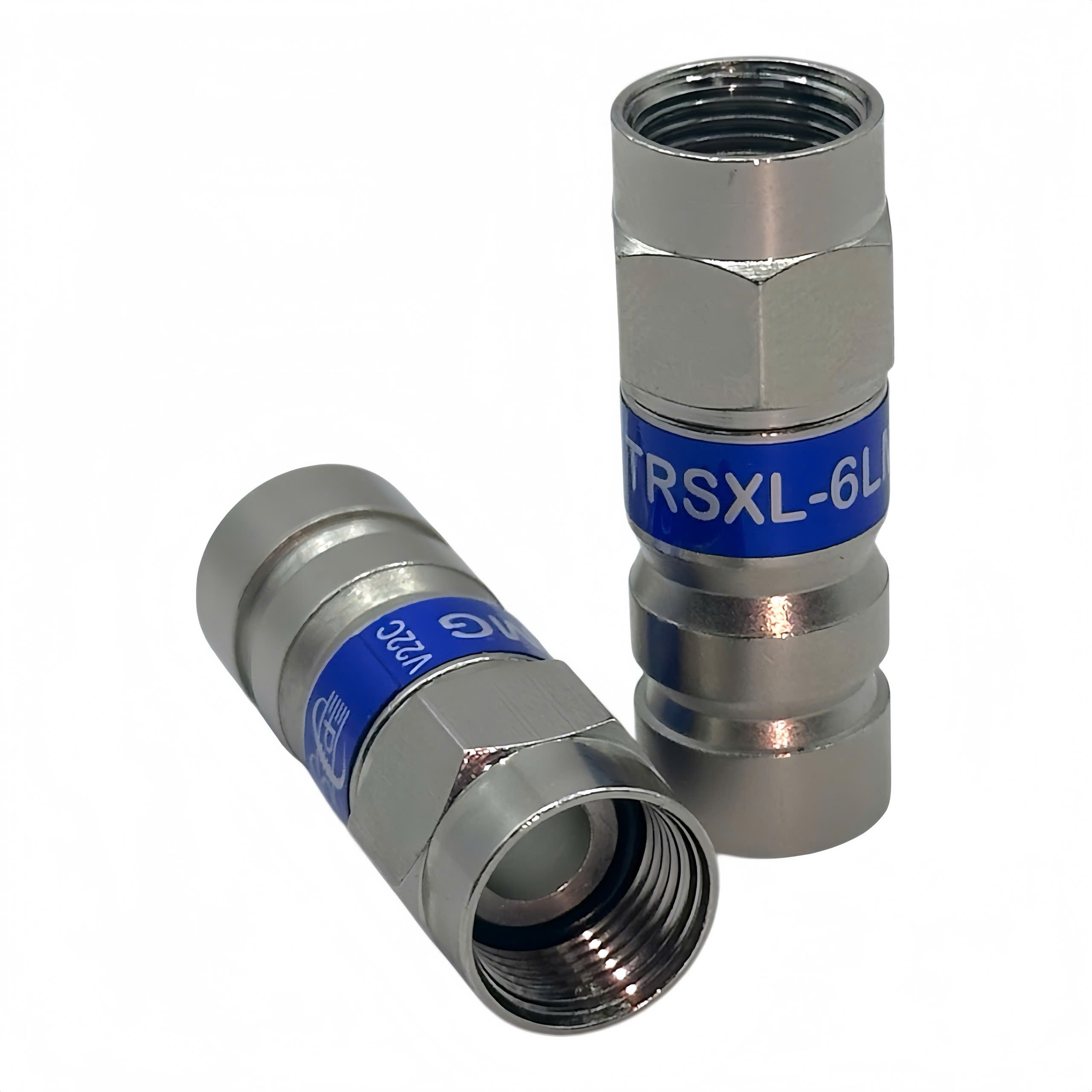

PCTTRSXL6LMG (SR) is a universal Series 6 compression connector with a 21mm stroke length for maximum shielding and grip. Designed for long cable runs or high-vibration environments, it ensures a secure, torque-retaining fit with continuous ground protection. This connector is available in two versions: with seal ring for added weather protection and without seal ring for standard indoor use. Its extended body, dual O-rings, and all-metal brass construction make it the professional’s choice for rugged, reliable installs
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
TRS Compression Connector |
| Gender |
Male (F-type) |
| Cable Compatibility |
RG6 cable (single tape and braid through quad-shield) |
| Impedance |
75 Ohms (Nominal) |
| Construction Material |
all Metal Design, 100% brass construction, Nickel plated brass |
| Compression Mechanism |
Dual metal compression rings with torque retaining lock washer |
| Weather Protection |
Dual O-ring moisture seals; all-metal design provides superior weatherproofing |
| Tool Compatibility |
PCT-RHXL-CT-AS, PCT-CT-RH, Ripley CT2-AS, and other 21 mm compression stroke tools |
| Application Use |
High-performance broadband, CATV, satellite, DOCSIS 3.1–4.0 systems; tested for harsh environmental conditions — certified to SCTE, ASTM, and Telcordia standards |
| Packaging |
A bag of 50 pcs |
