OVERVIEW

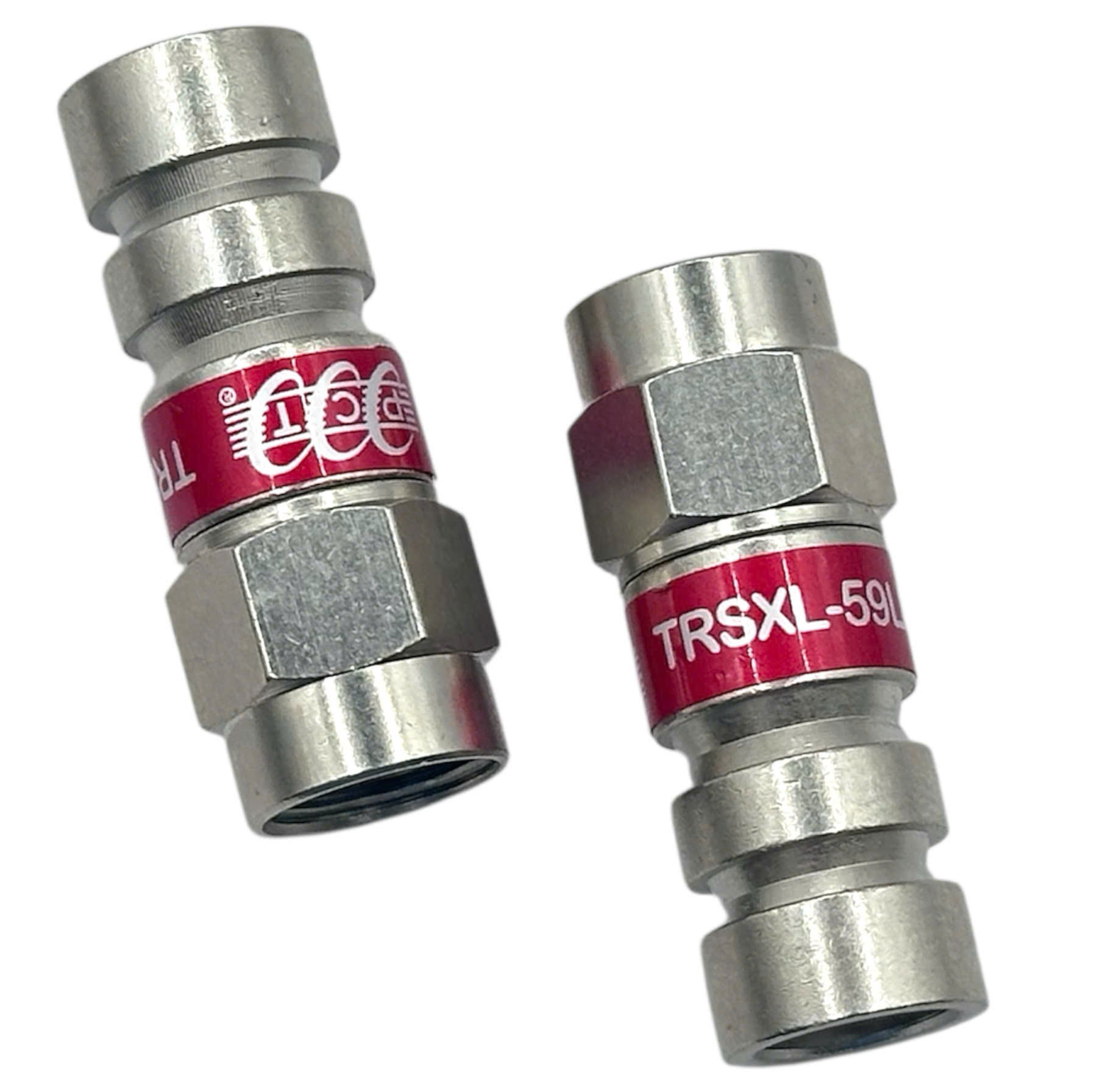

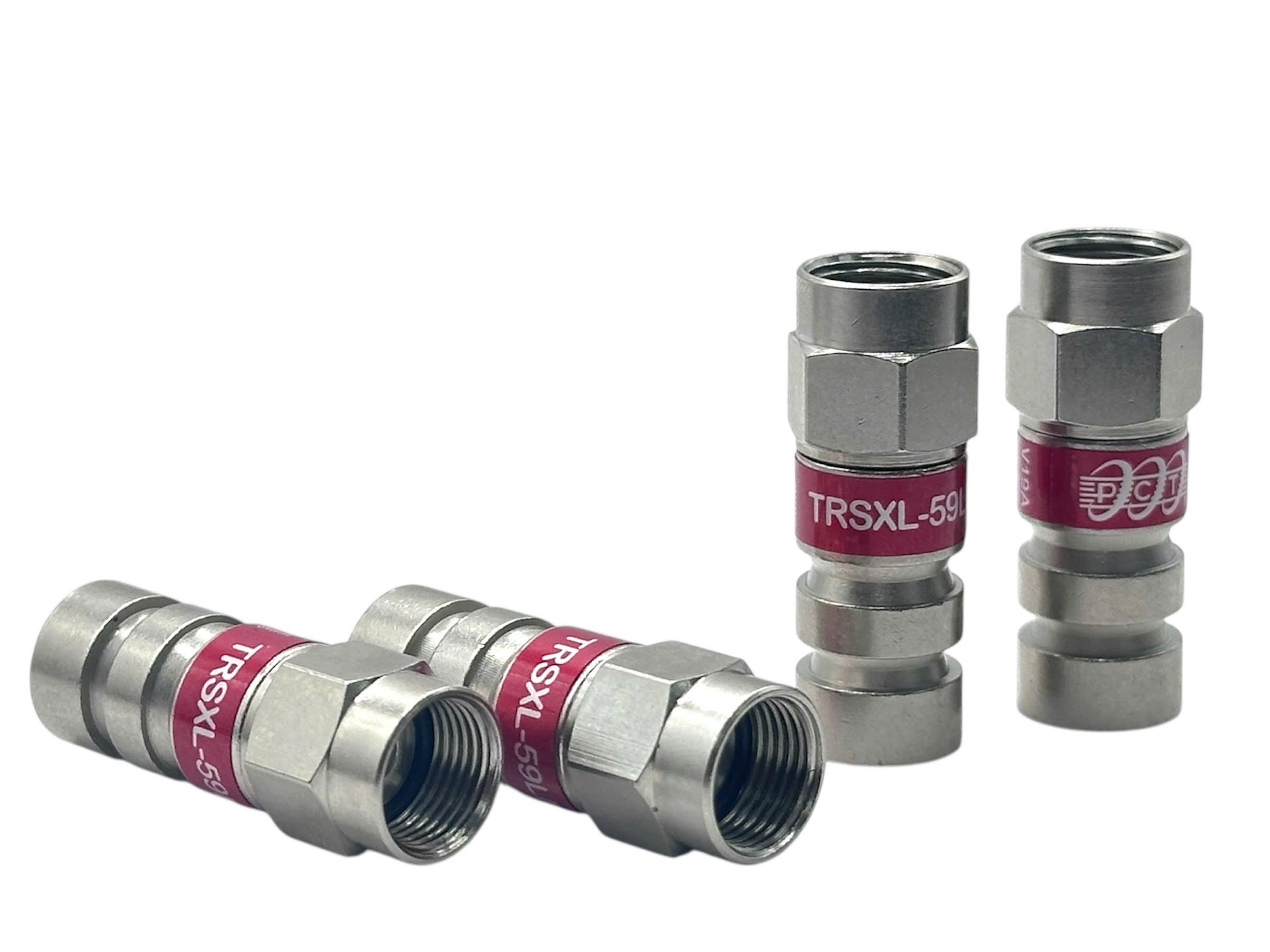

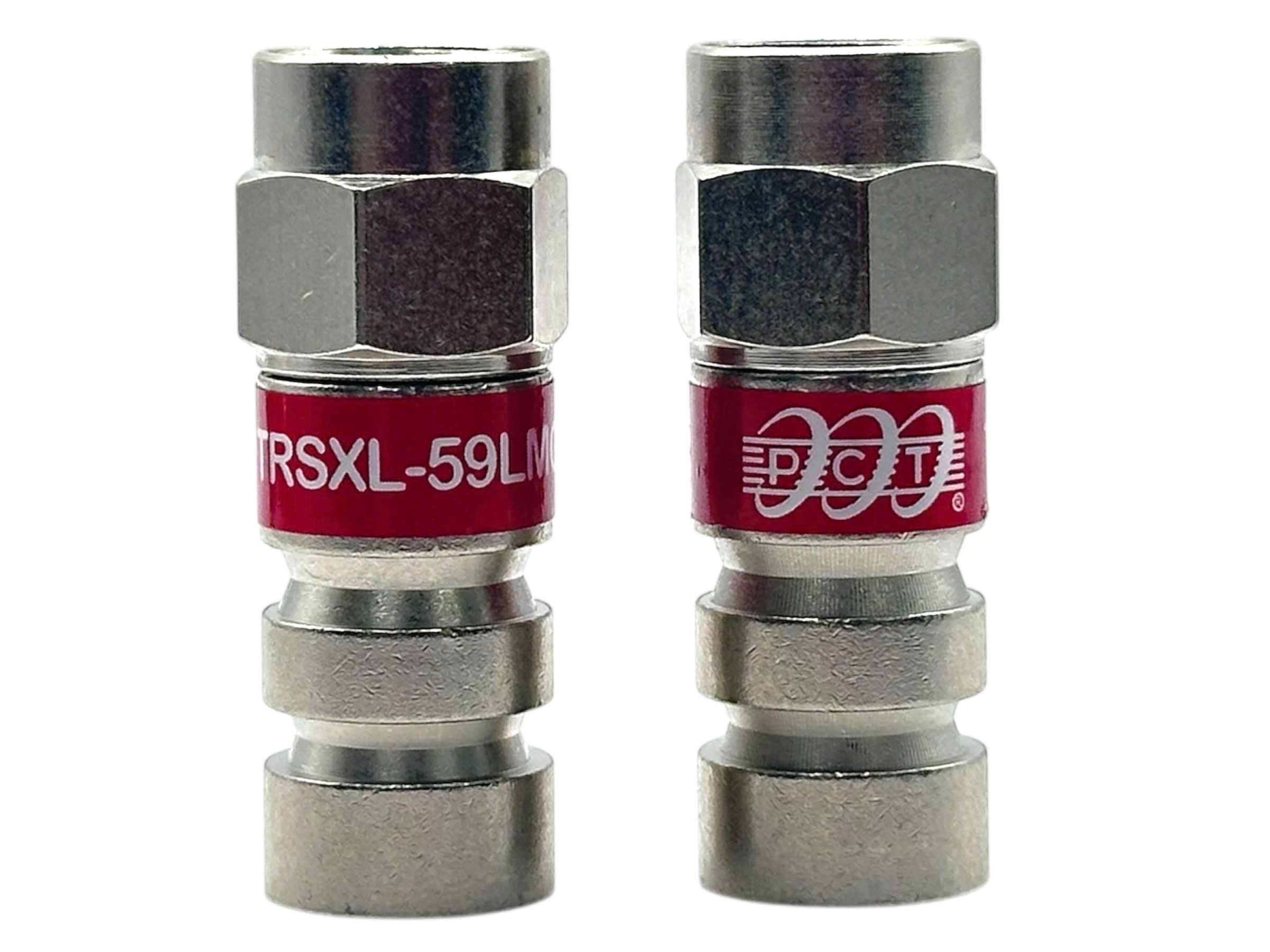

PCTTRSXL59LMG is a long-stroke RG-59 compression connector engineered for maximum durability, signal integrity, and weather resistance. Its 21mm compression length ensures a stronger hold, better strain relief, and tool compatibility—ideal for high-vibration or extended cable runs. With torque-retaining and continuous ground features, plus dual O-rings for superior moisture protection, it’s the trusted choice for demanding video and broadband installs.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
TRS Compression Connector |
| Gender |
Male (F-type) |
| Cable Compatibility |
RG59 cable (single tape and braid through quad-shield) |
| Impedance |
75 Ohms (Nominal) |
| Construction Material |
Nickel plated brass |
| Compression Mechanism |
Dual metal compression rings with torque retaining lock washer |
| Weather Protection |
Dual O-ring moisture seals; all-metal design provides superior weatherproofing |
| Tool Compatibility |
PCT-RHXL-CT-AS, PCT-CT-RH, Ripley CT2-AS, and other 21 mm compression stroke tools |
| Application Use |
High-performance broadband, CATV, satellite, DOCSIS 3.1–4.0 systems; tested for harsh environmental conditions — certified to SCTE, ASTM, and Telcordia standards |

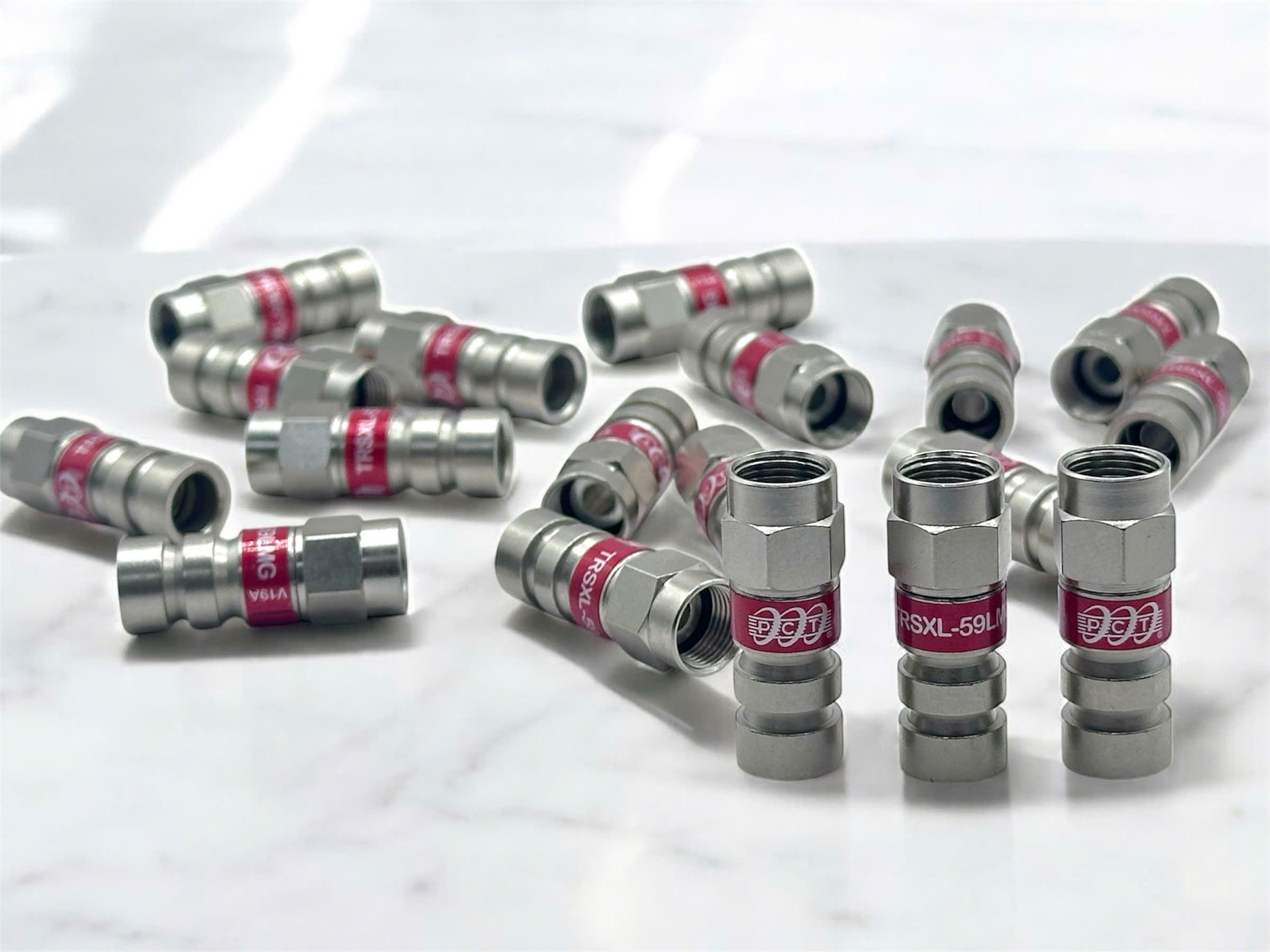

| Packaging |
A bag of 50 pcs |
