OVERVIEW

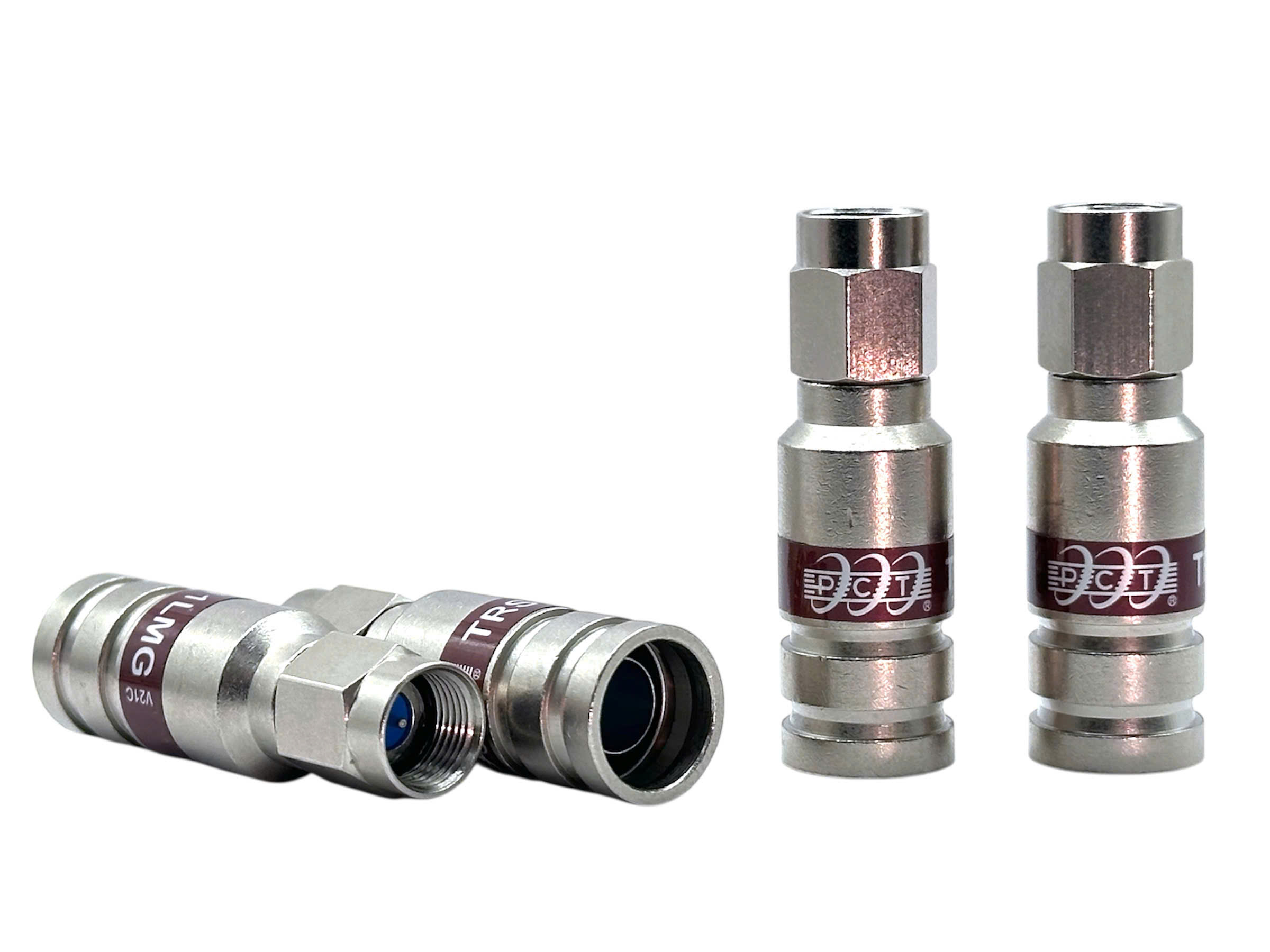

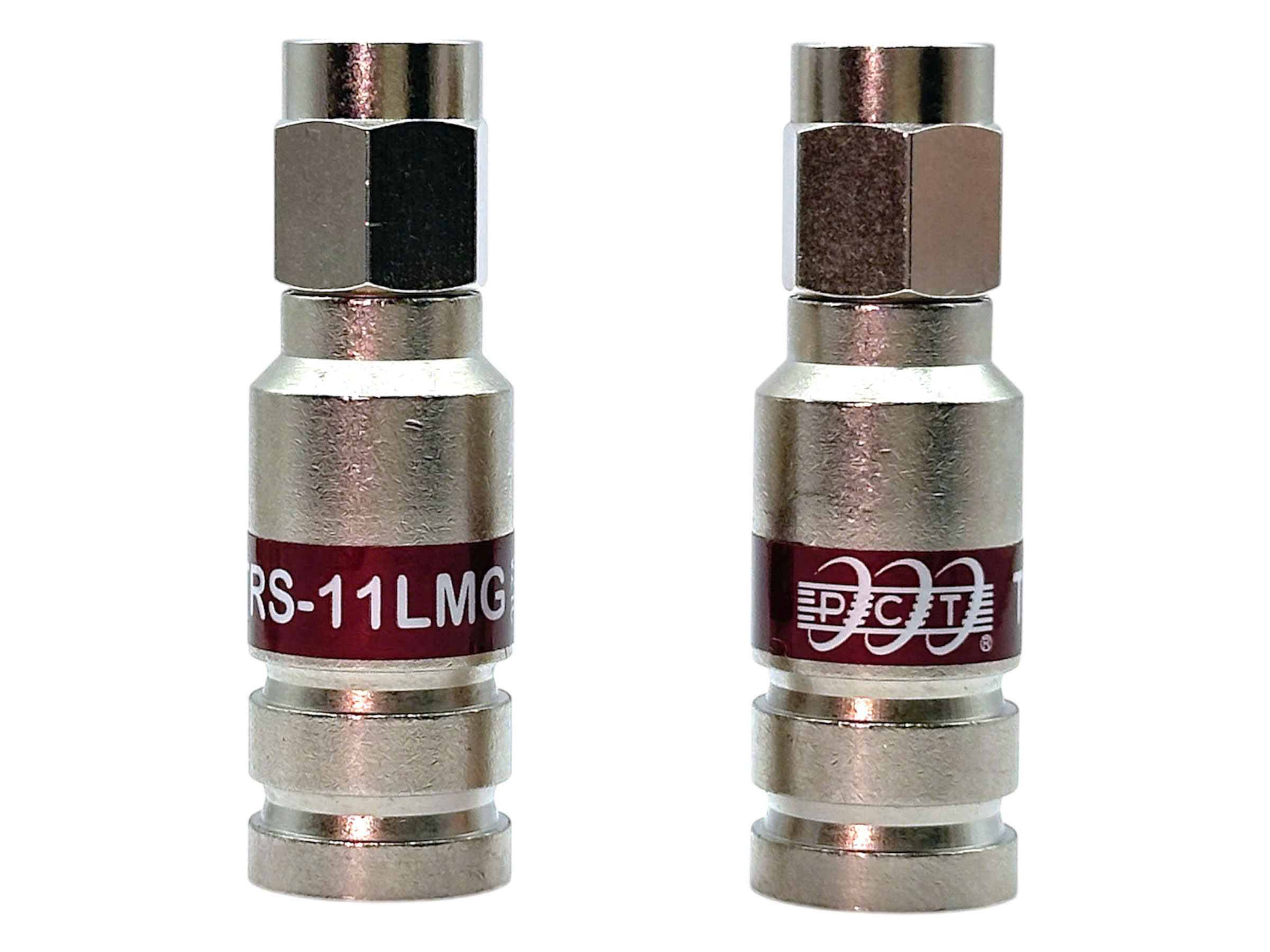

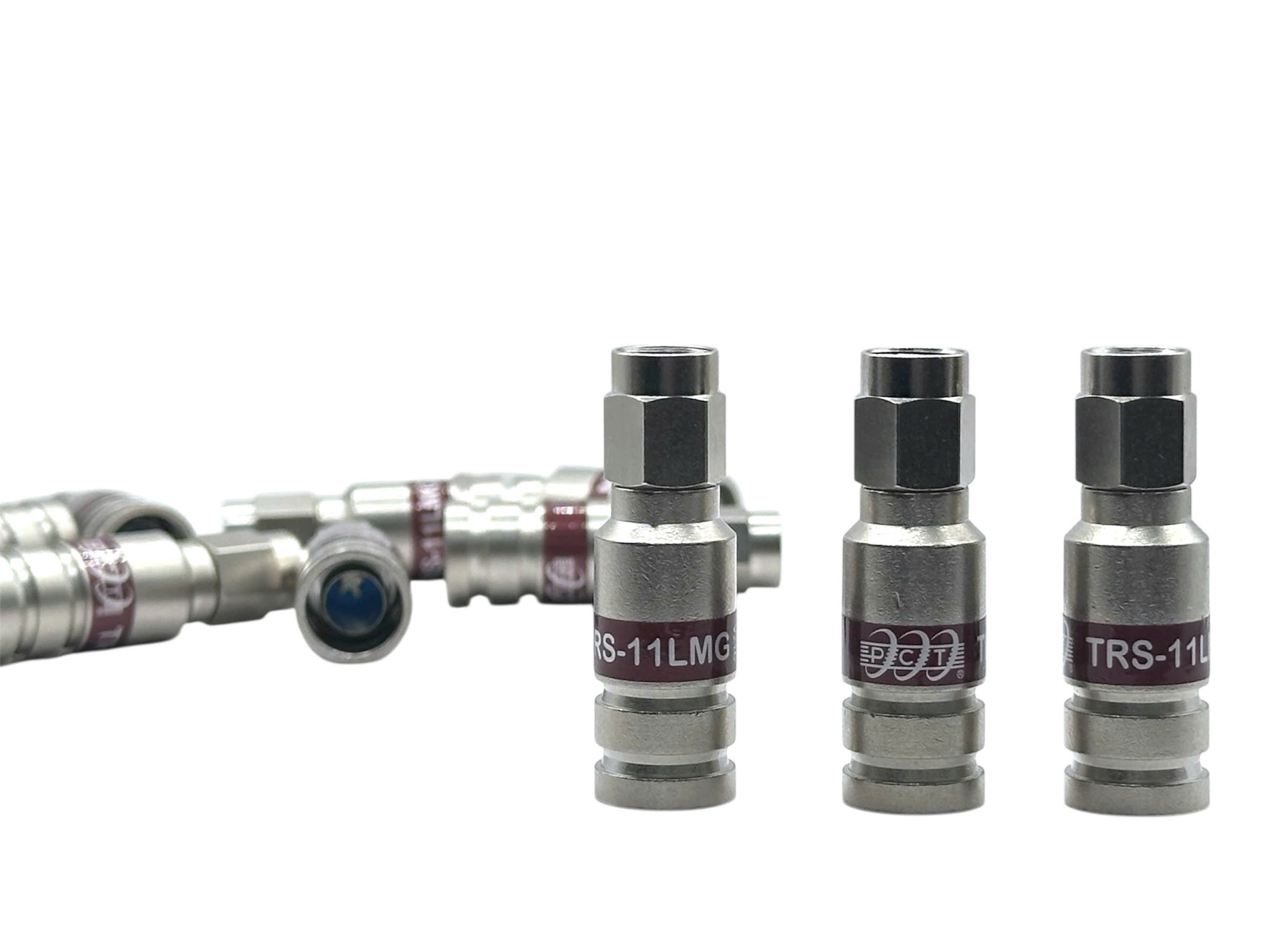

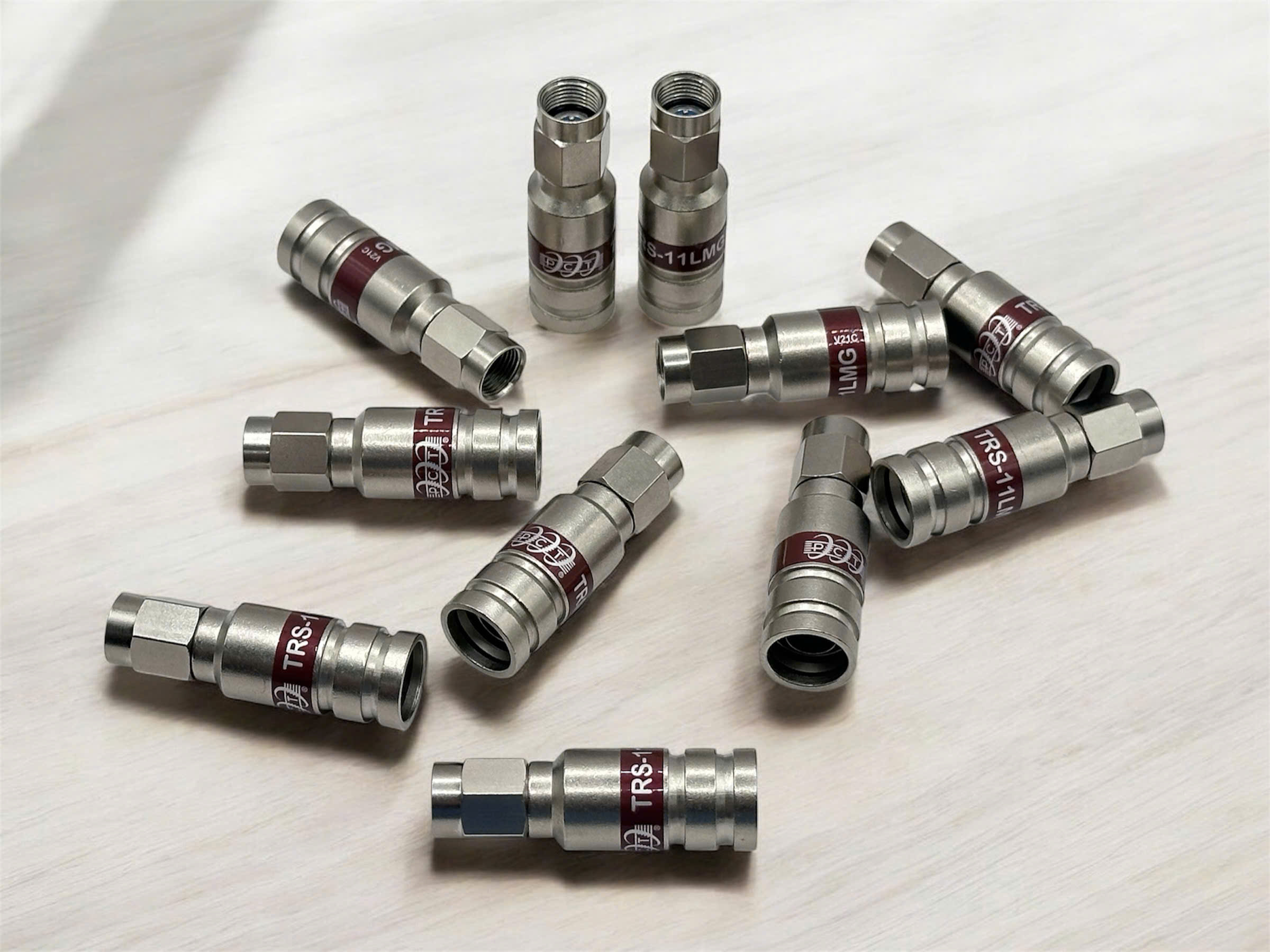

PCTTRS11LMG is engineered for superior performance, patented torque-retaining and continuous ground technology that maintains shielding—even when loose. Its all-metal brass construction, dual O-ring seal, and enhanced ingress protection ensure long-term reliability in demanding environments. SCTE, ASTM, and Telcordia compliant, it's the ideal choice for professional RG-11 installations where signal integrity and durability are critical.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
TRS Compression Connector |
| Gender |
Male |
| Cable Compatibility |
RG11 cables; supports Standard through Quad-Shield |
| Impedance |
75 Ohms |
| Construction Material |
All-brass body (Nickel-Plated); Beryllium Copper pin with Tin Plating |
| Compression Mechanism |
Torque Retaining design with built-in lock washer for stable, vibration- resistant connection |
| Weather Protection |
Dual O-Ring moisture seal; corrosion-resistant all-metal construction |
| Tool Compatibility |
Compatible with PCT-AIO-CT, PCT-RH-CT-AS, PCT-DRS-CT-AS, PCT-TRS-CT-AS |
| Application Use |
Ideal for broadband, CATV, satellite, and DOCSIS 3.1–4.0 high-performance systems; meets ANSI/SCTE, ASTM, and Telcordia standards |
| Packaging |
Bulk packaged in a bag of 30 pcs |
