OVERVIEW

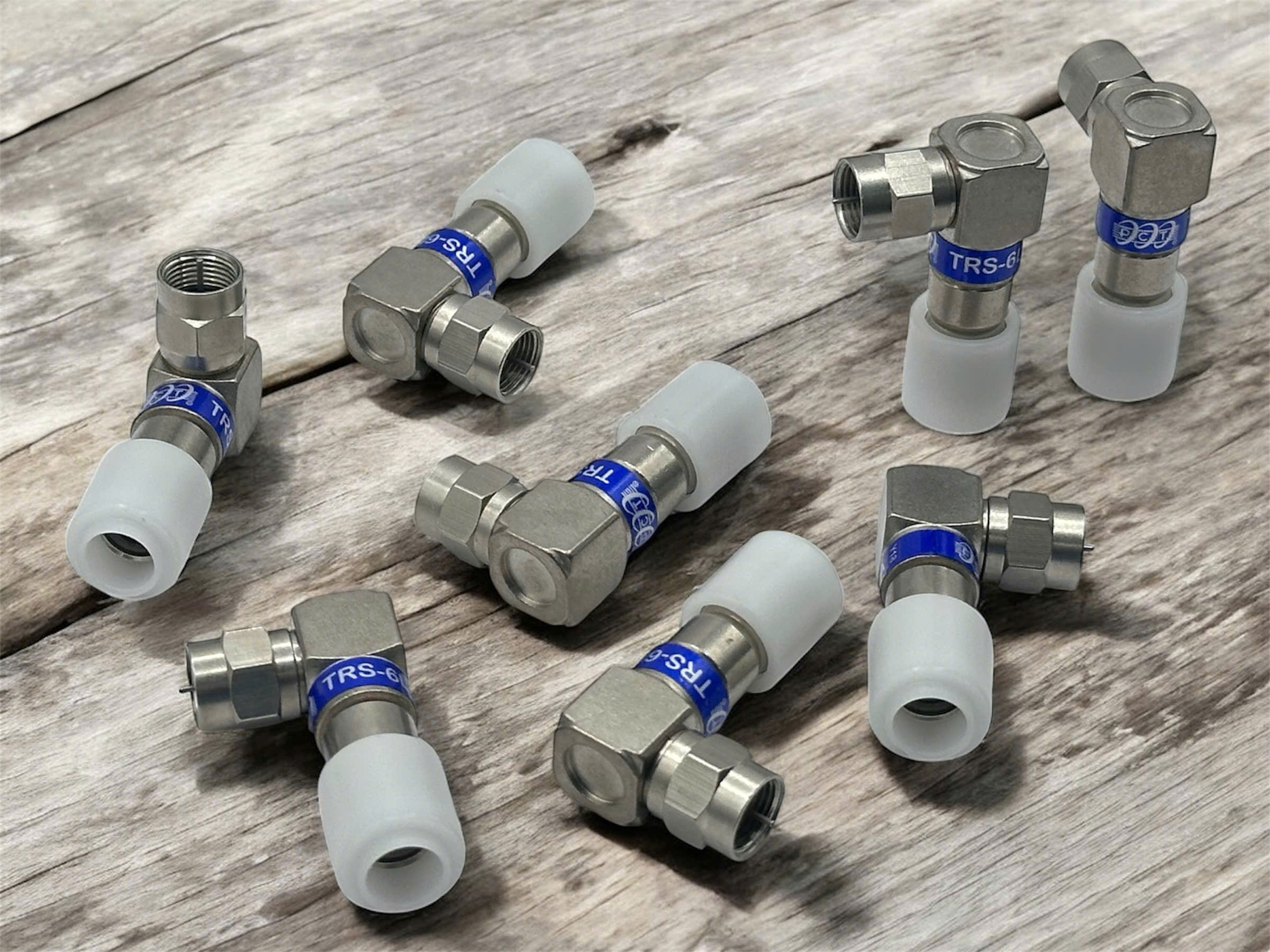

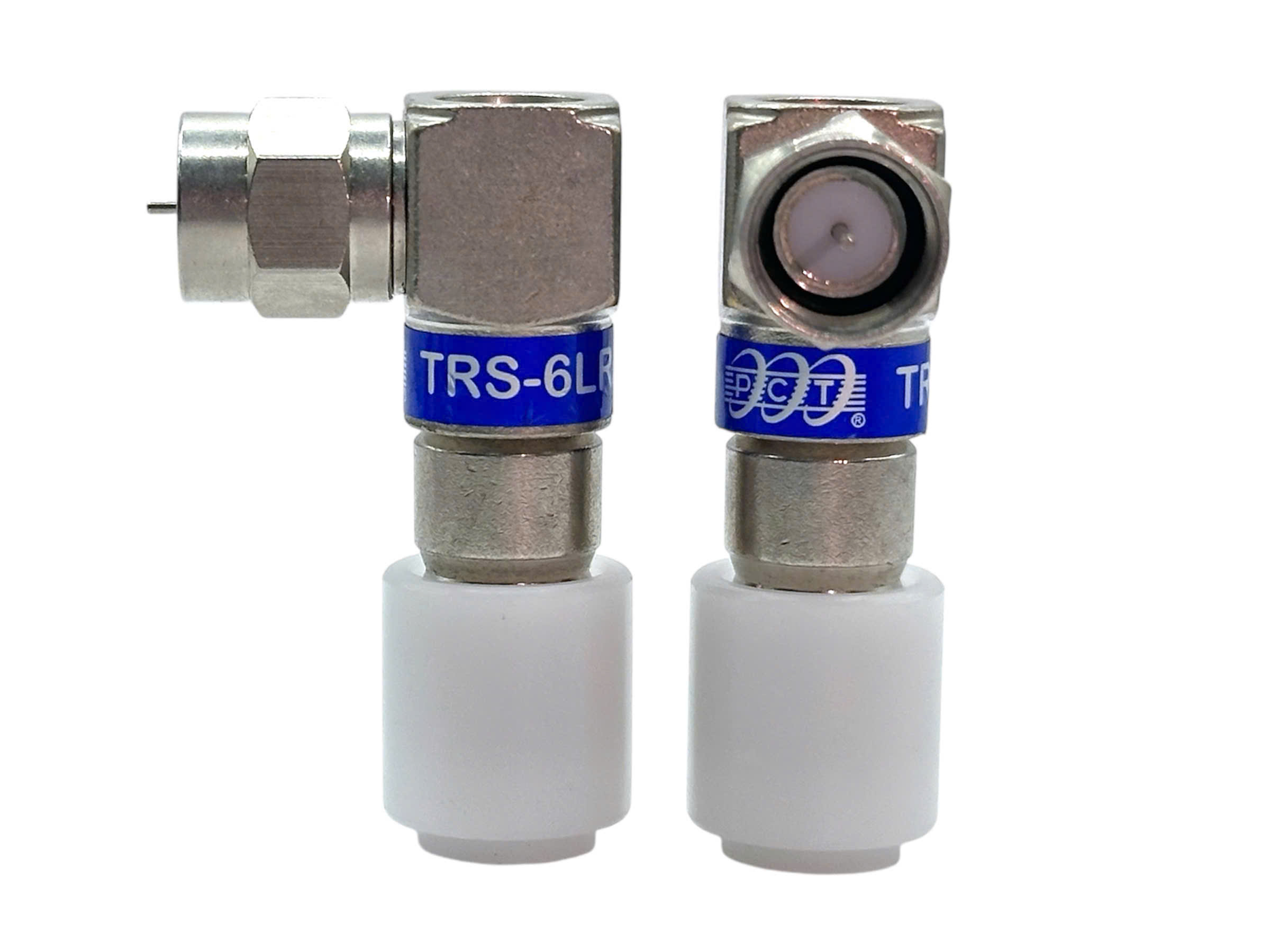

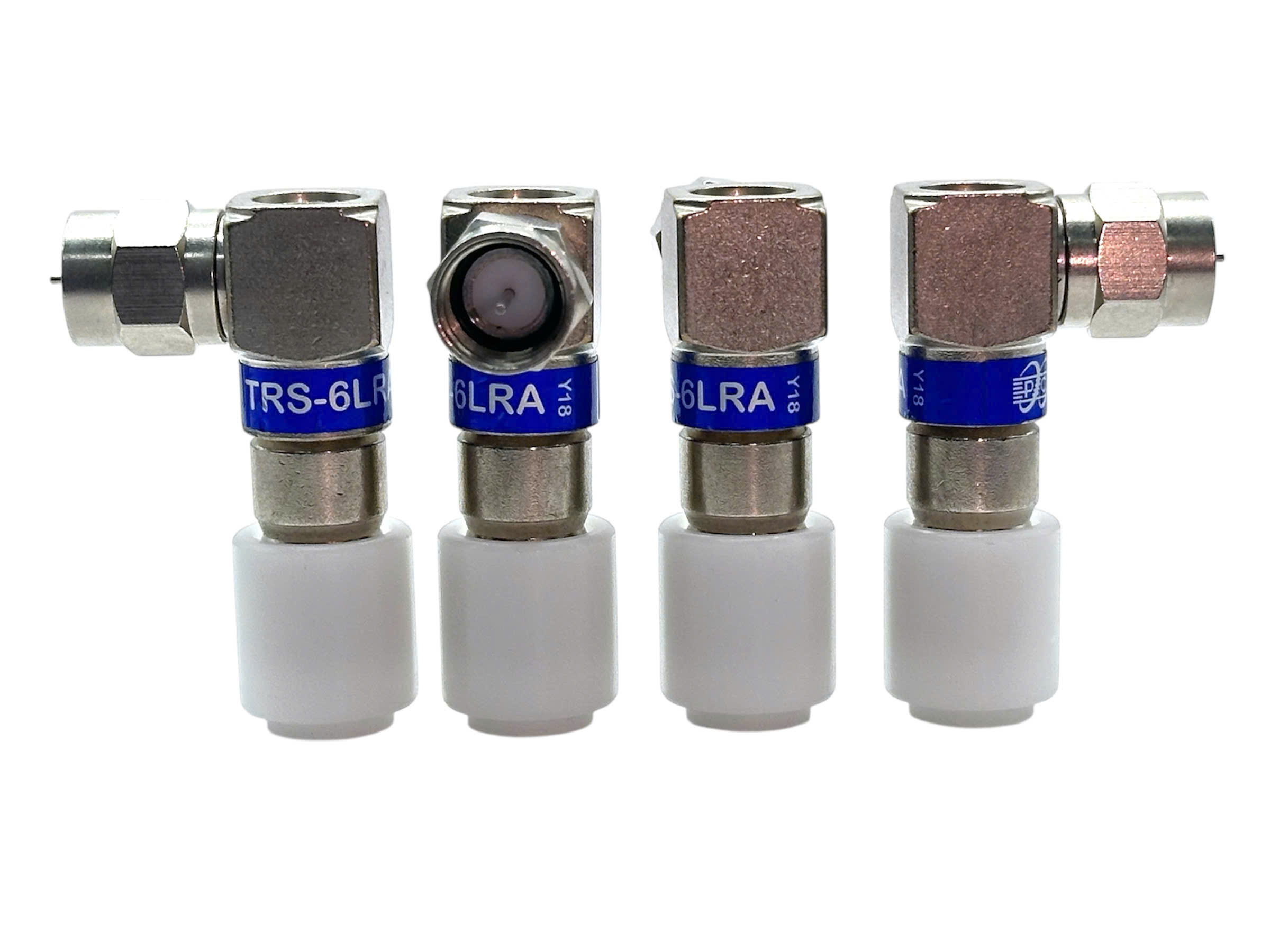

PCTTRS6LRA is a right-angle compression connector designed for RG-6 coax (60% to quad-shield), built for tight installs and tough environments. Its patented torque-retaining design prevents loosening over time, while dual-seal weatherproofing defends against moisture and corrosion. With superior shielding and low signal loss, it delivers rock-solid performance in high-frequency A/V and data setups—indoors or out.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
Right Angle F-Type Compression Connector |
| Gender |
Male |
| Cable Compatibility |
RG6 Cable (Bi-Shield through Quad-Shield) |
| Impedance |
75 Ohms (Nominal) |
| Construction Material |
Nickel-Plated Brass |
| Compression Mechanism |
Patented dual 360° compression rings with split-ring lock washer |
| Weather Protection |
Dual O-Ring design for moisture resistance |
| Tool Compatibility |
Compatible with PCT-AIO-CT, PCT-RH-CT-AS, and 18mm stroke compression tools |
| Application Use |
Broadband, CATV, satellite, and DOCSIS 3.1–4.0 systems |
| Packaging |
A bag of 50 pcs |
