OVERVIEW

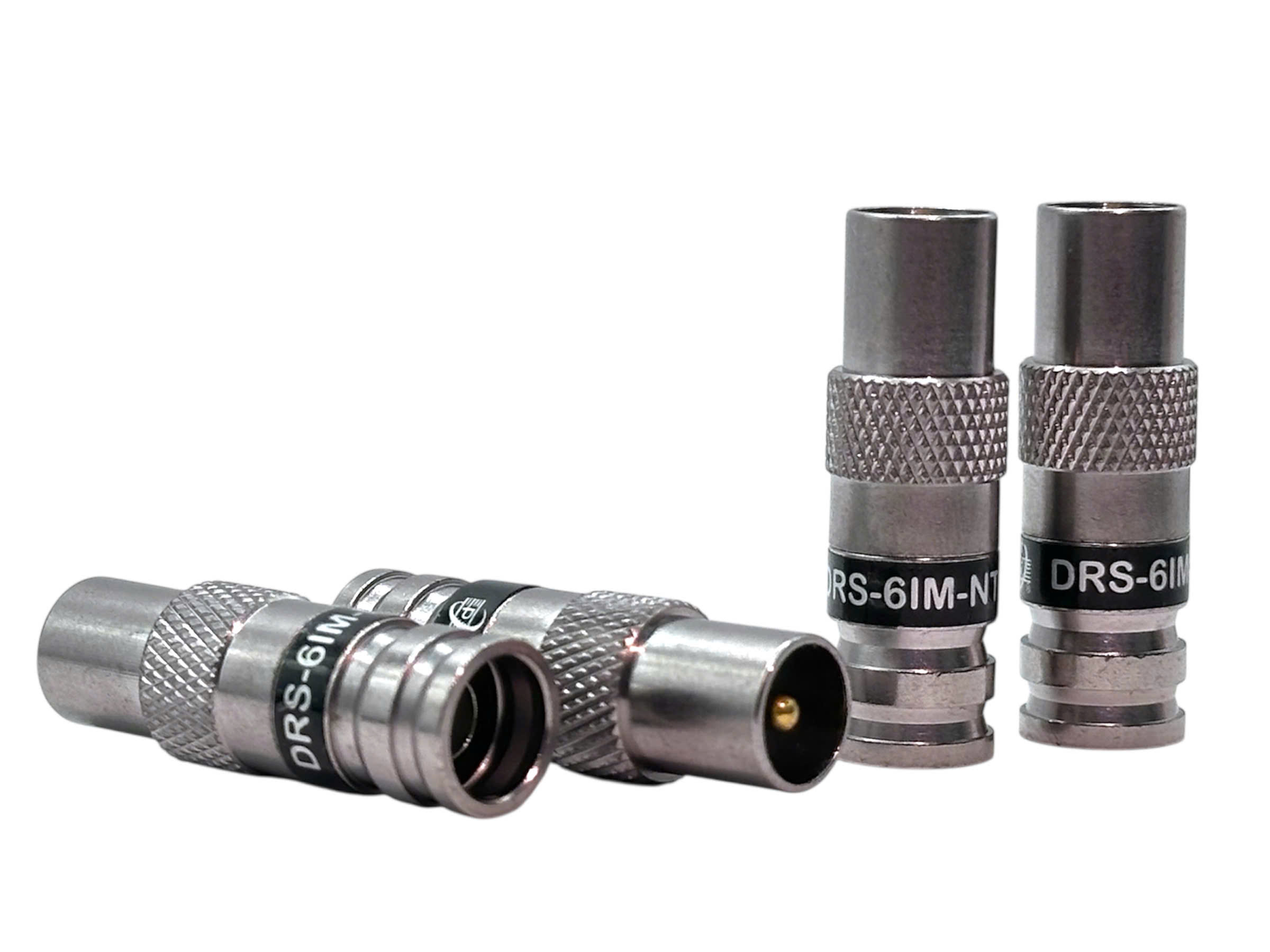

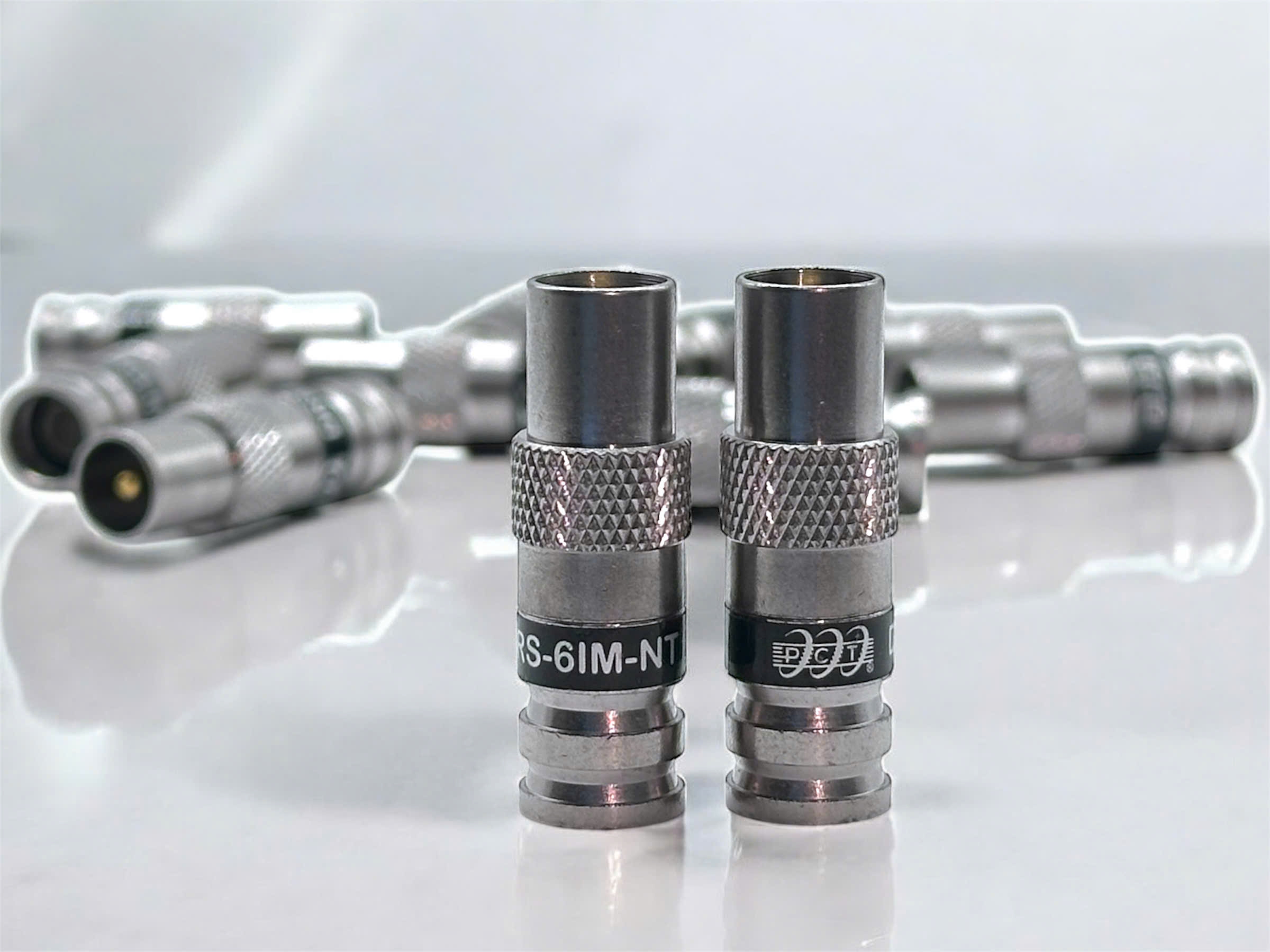

PCTDRS6IMT – IEC Male Compression Connector for RG-6, engineered for moisture-prone environments, the PCT DRS-6IMT features a nickel-tin finish and an internal barrier to prevent signal loss. Designed for RG-6 cables (60% to tri-shield), this IEC male connector ensures a secure, lasting connection ideal for satellite, cable TV, CCTV, and broadband installations. Reliable, weather-resistant, and built to professional standards.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
DRS Compression Connector |
| Gender |
Male (IEC) |
| Cable Compatibility |
Series 6 Cable 60% through Tri-Shield |
| Impedance |
75 Ohms |
| Construction Material |
Nickel Tin Plated Brass |
| Compression Mechanism |
Compression type (specialized tool required) |
| Weather Protection |
Dual O-ring seals (moisture-resistant) |
| Tool Compatibility |
PCT-AIO-CT Compression Tool |
| Application Use |
Broadband, CATV, satellite, DOCSIS 3.1–4.0 systems |
| Packaging |
A bag of 50 pcs |
