OVERVIEW

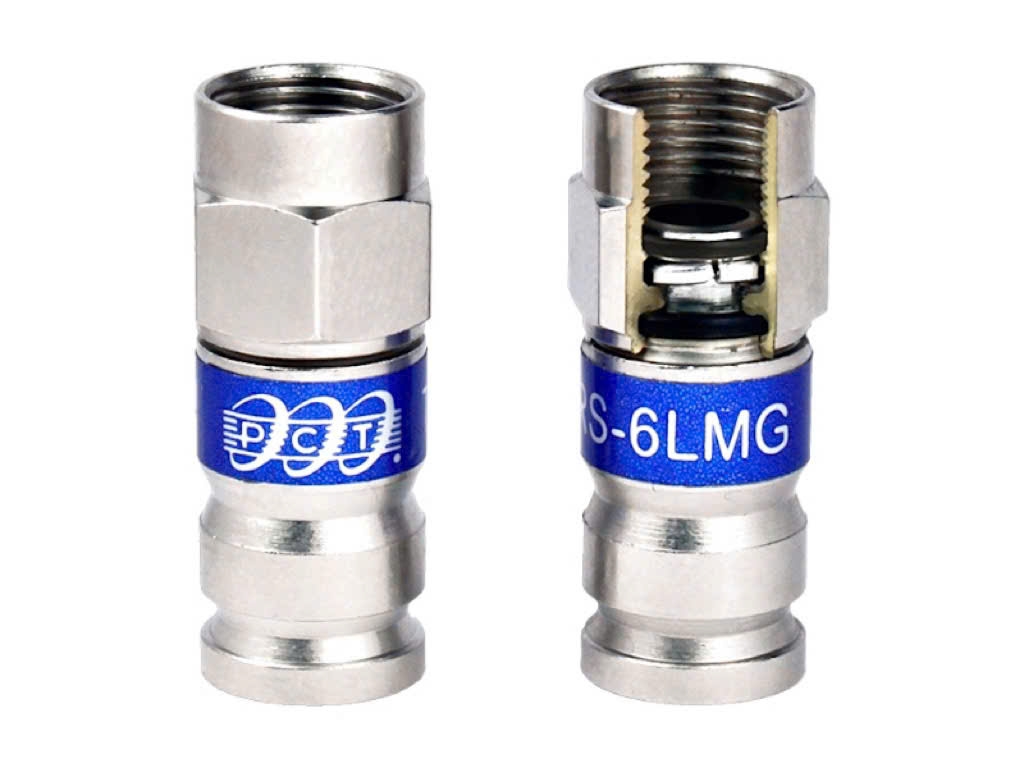

PCTTRS6LMG is a high-performance RG-6 compression connector designed to eliminate signal issues before they start. With patented torque-retaining and continuous grounding technology, it maintains shielding even when loose—protecting against interference and service disruptions. Its all-metal, nickel-plated brass body, dual O-rings, and metal compression rings ensure a weather-tight, corrosion-resistant seal for reliable outdoor or indoor use. Built for DOCSIS 4.0 and tested to ANSI/SCTE, ASTM, and Telcordia standards, it’sthe smart solution for professional-grade installations where quality matters.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
TRS Compression Connector |
| Gender |
Male |
| Cable Compatibility |
RG6 Cable Bi-Shield through Quad-Shield |
| Impedance |
75 Ohms |
| Construction Material |
All-Metal Construction with solid brass body and compression rings, Nickel-Plated Brass finish |
| Compression Mechanism |
Dual Metal Compression Rings with Torque Retaining Lock Washer |
| Weather Protection |
Dual O-Ring Design providing superior moisture barrier |
| Tool Compatibility |
Compatible with PCT-AIO-CT, PCT-RH-CT-AS, and most 18 mm compression stroke tools |
| Application Use |
Ideal for broadband, CATV, satellite, and DOCSIS 3.1–4.0 high-performance systems, tested to ANSI/SCTE, ASTM, and Telcordia standards including loosening torque requirements |
| Packaging |
A bag of 50 pcs |
