OVERVIEW

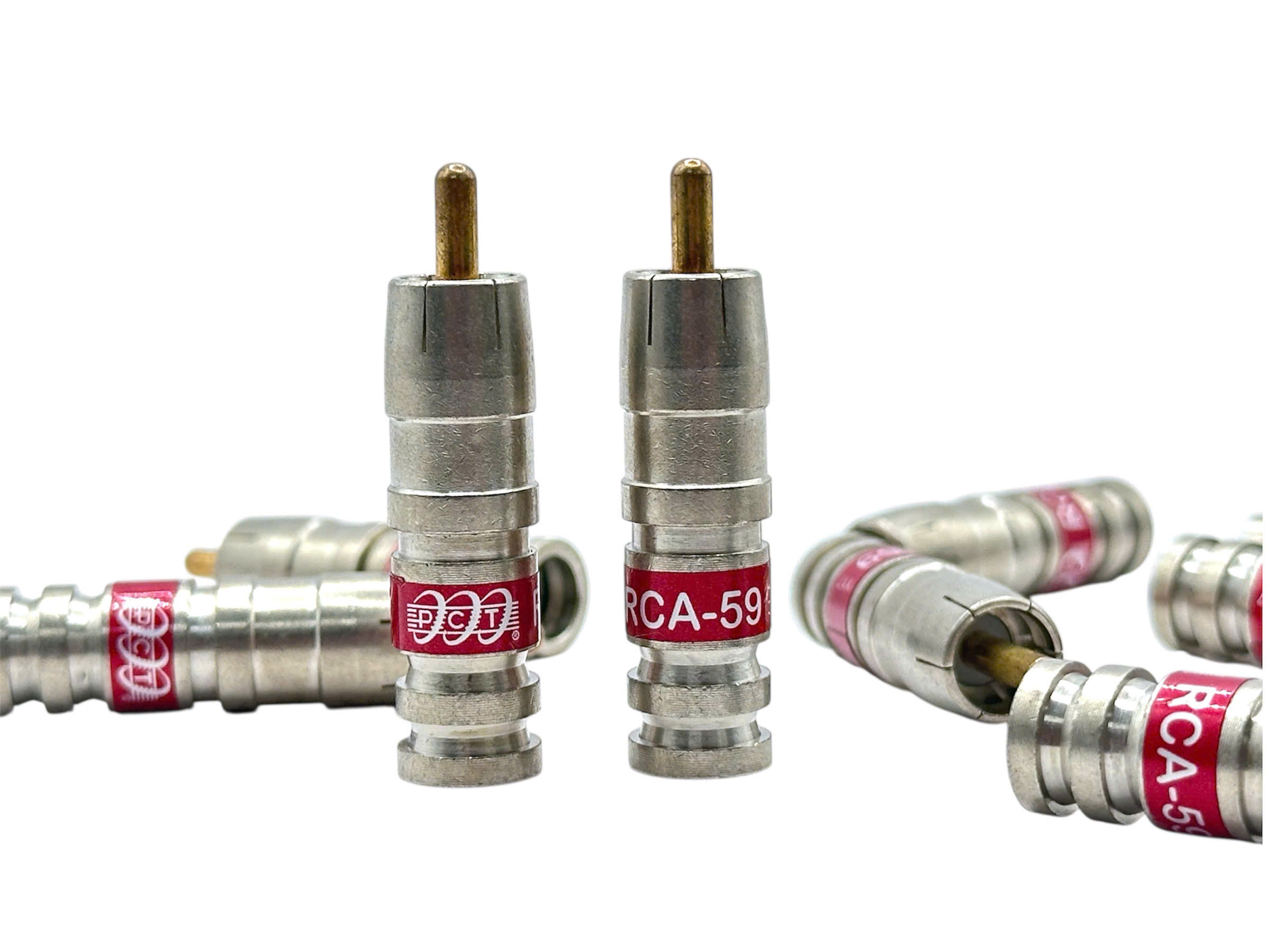

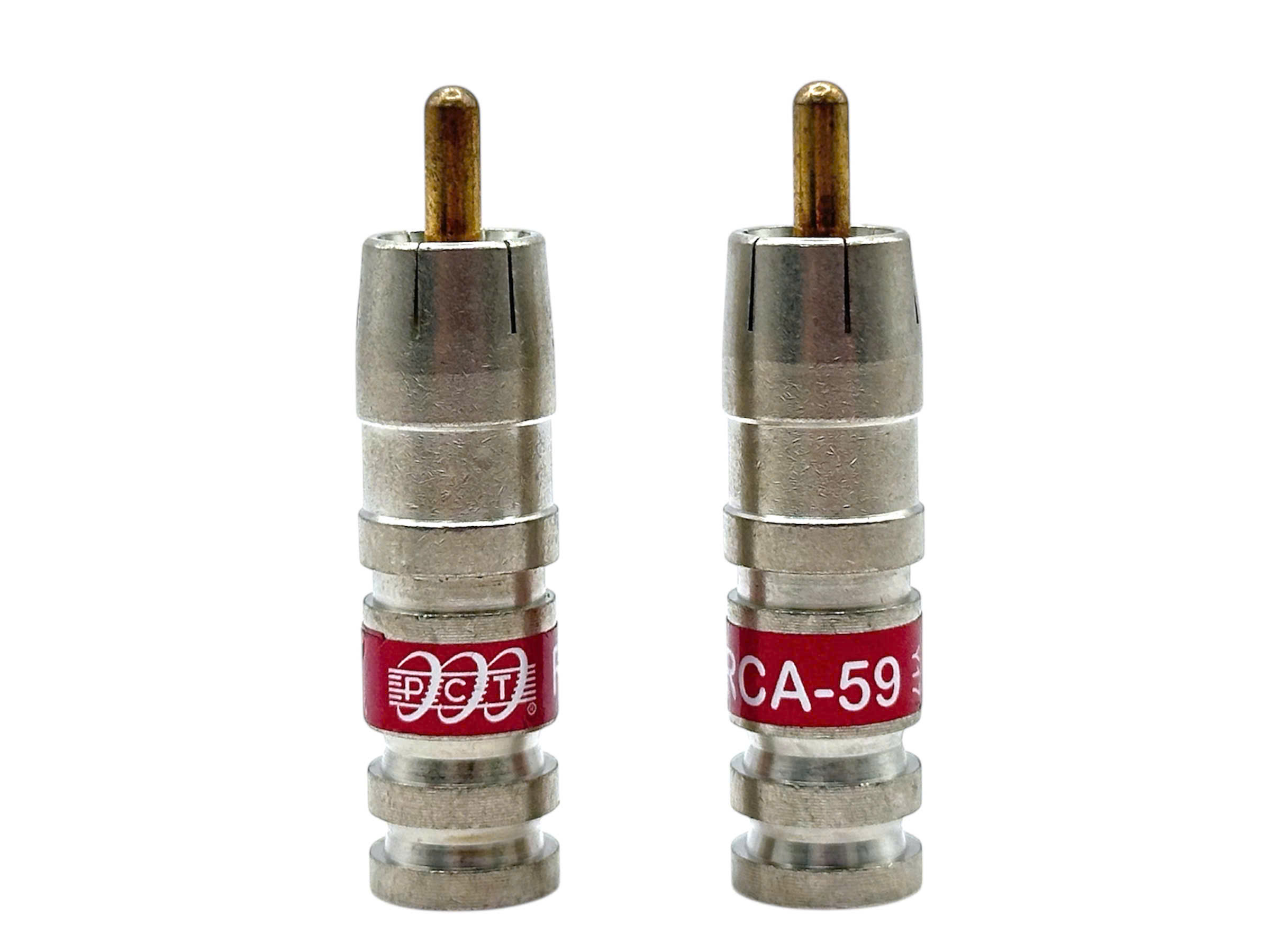

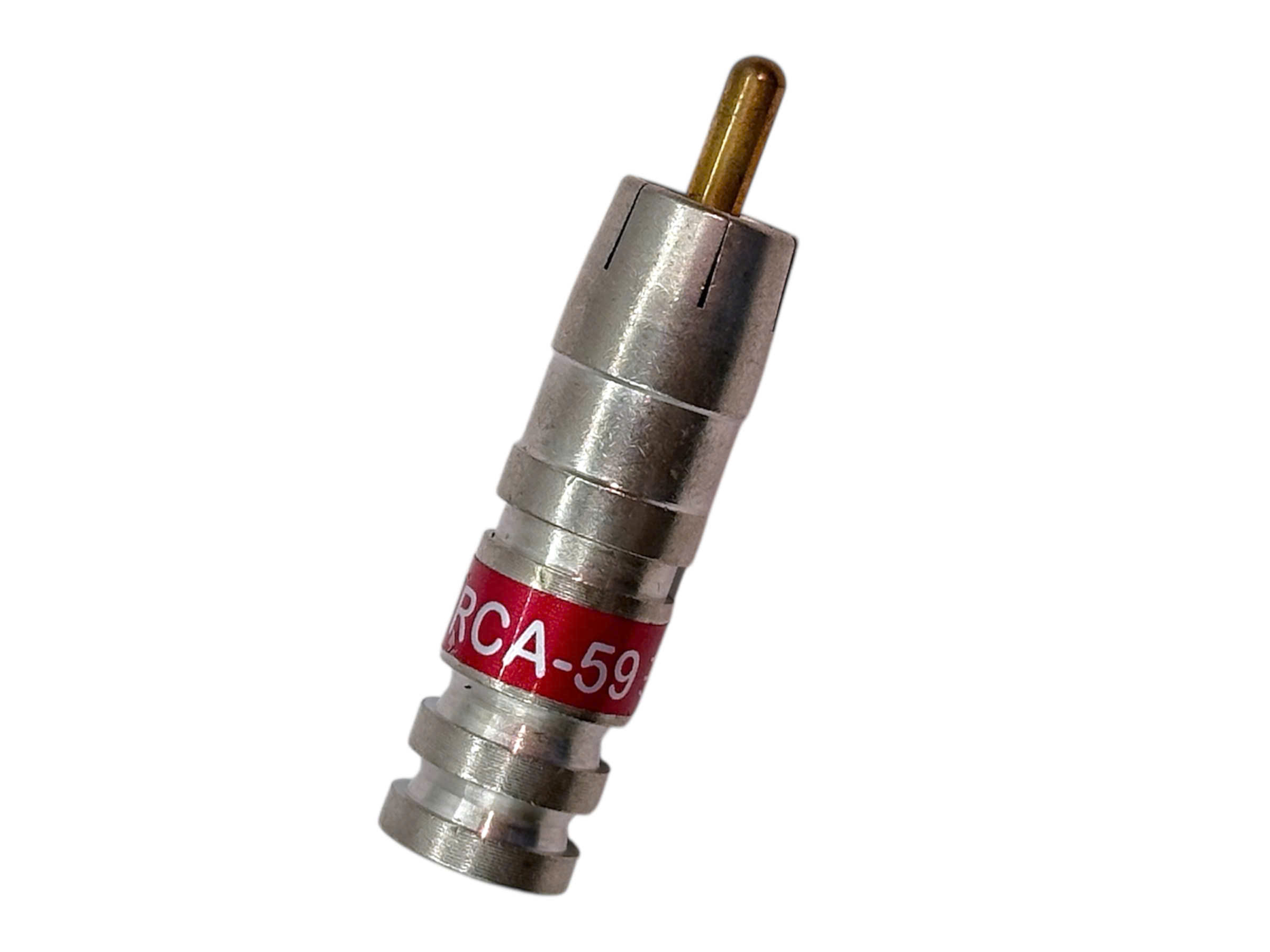

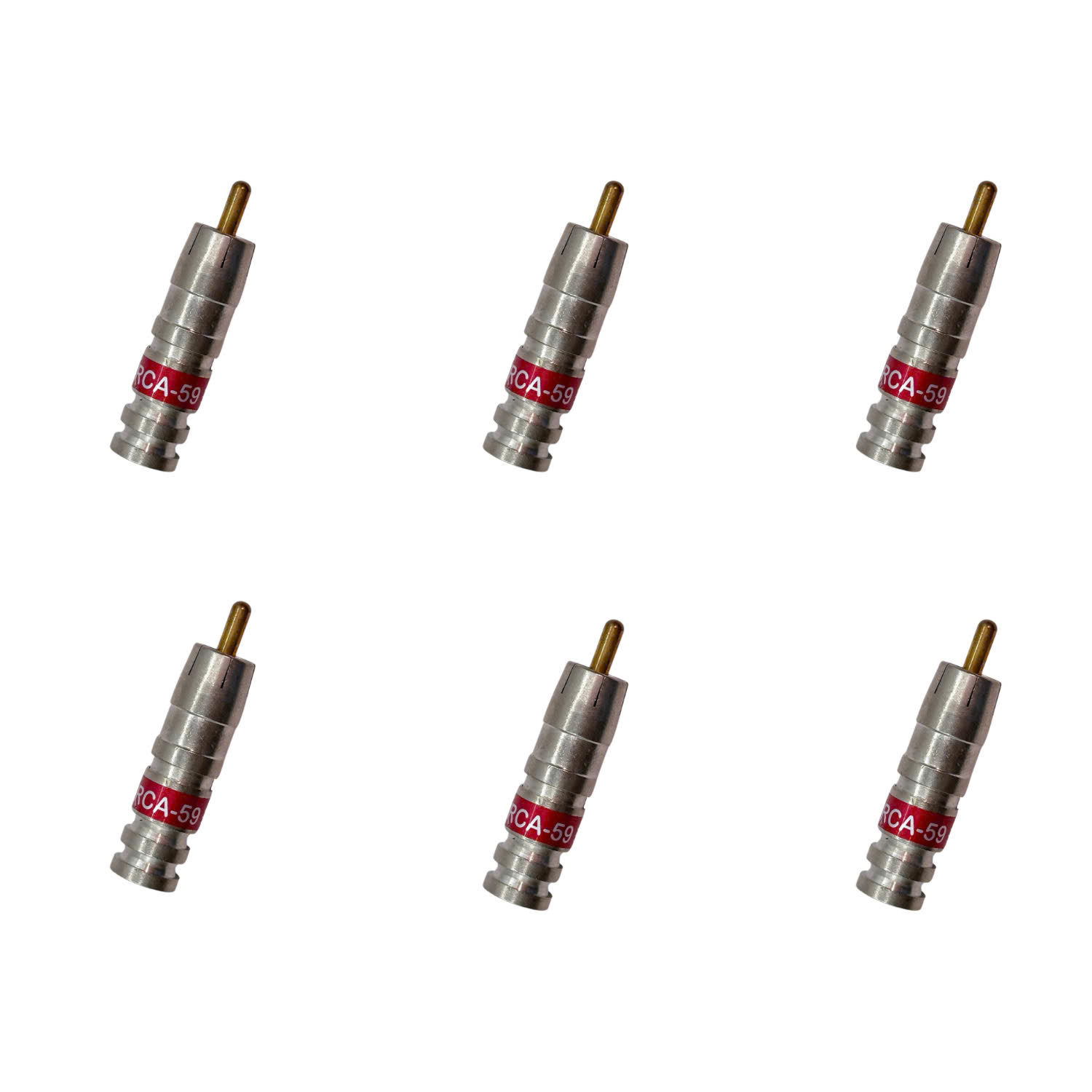

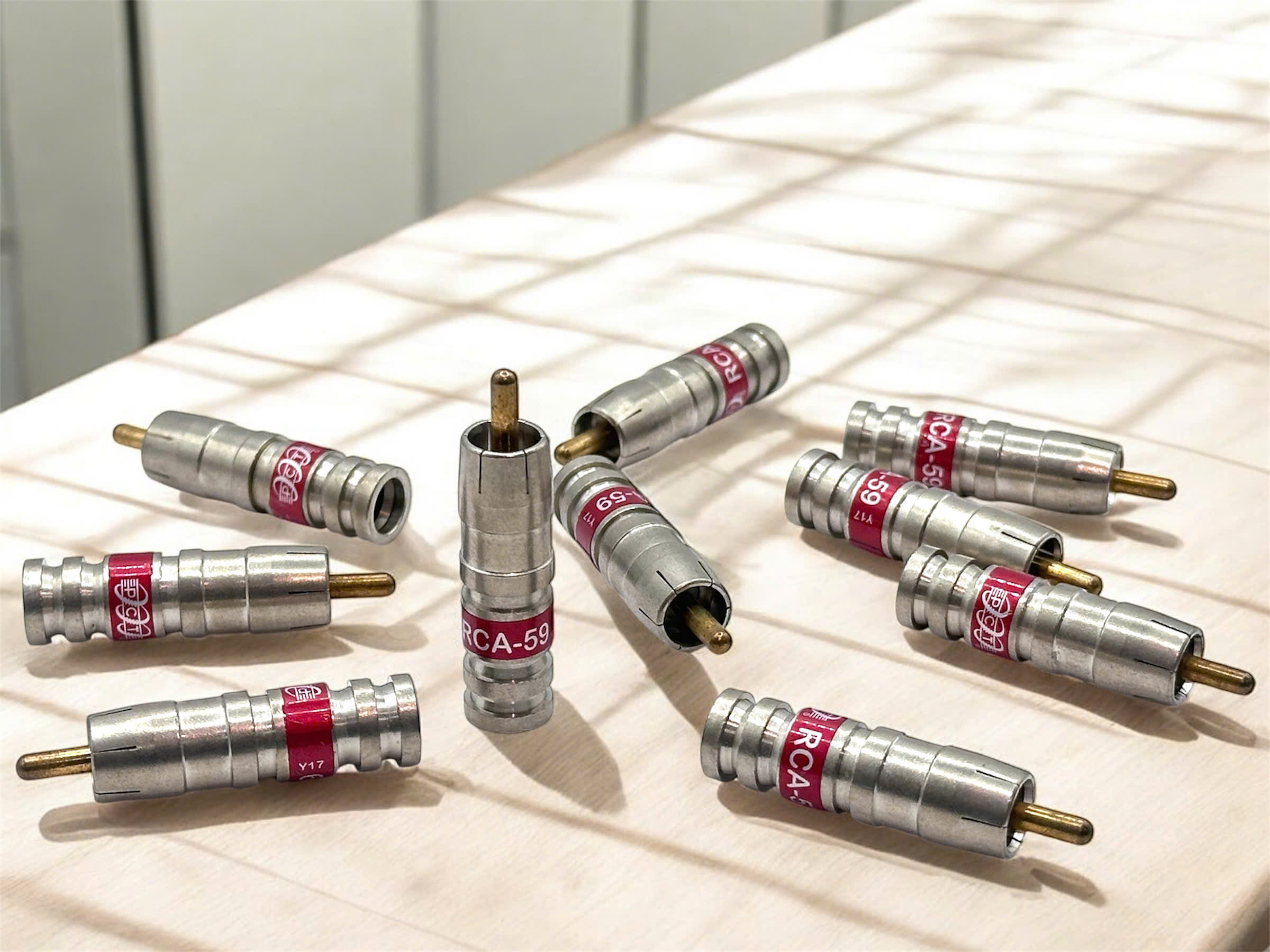

PCTRCA59 is a precision RCA compression connector for RG-59 coax (60% to quad-shield), delivering secure, high-performance terminations for custom A/V and component video cables. Its rugged nickel-plated brass body, Delrin® insulator, and gold-plated center pin ensure maximum signal integrity and durability. Patented 360° compression guarantees reliable, professional connections. SCTE-compliant. Right-angle version available.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
RCA Compression Connector (Universal) |
| Gender |
Male |
| Cable Compatibility |
RG-59, 60% through Quad Shield |
| Impedance |
75 Ohms |
| Construction Material |
Nickel-plated brass body; brass pin with gold plating; Delrin insulator |
| Weather Protection |
Sealed compression interface with high cable retention and moisture resistance |
| Tool Compatibility |
PCT-AIO-CT compression tool |
| Application Use |
Ideal for broadband, AV, and RF applications using RG-59 cables being fully compliant with SCTE specifications |
| Packaging |
Bulk packaged in a bag of 50 |
