OVERVIEW

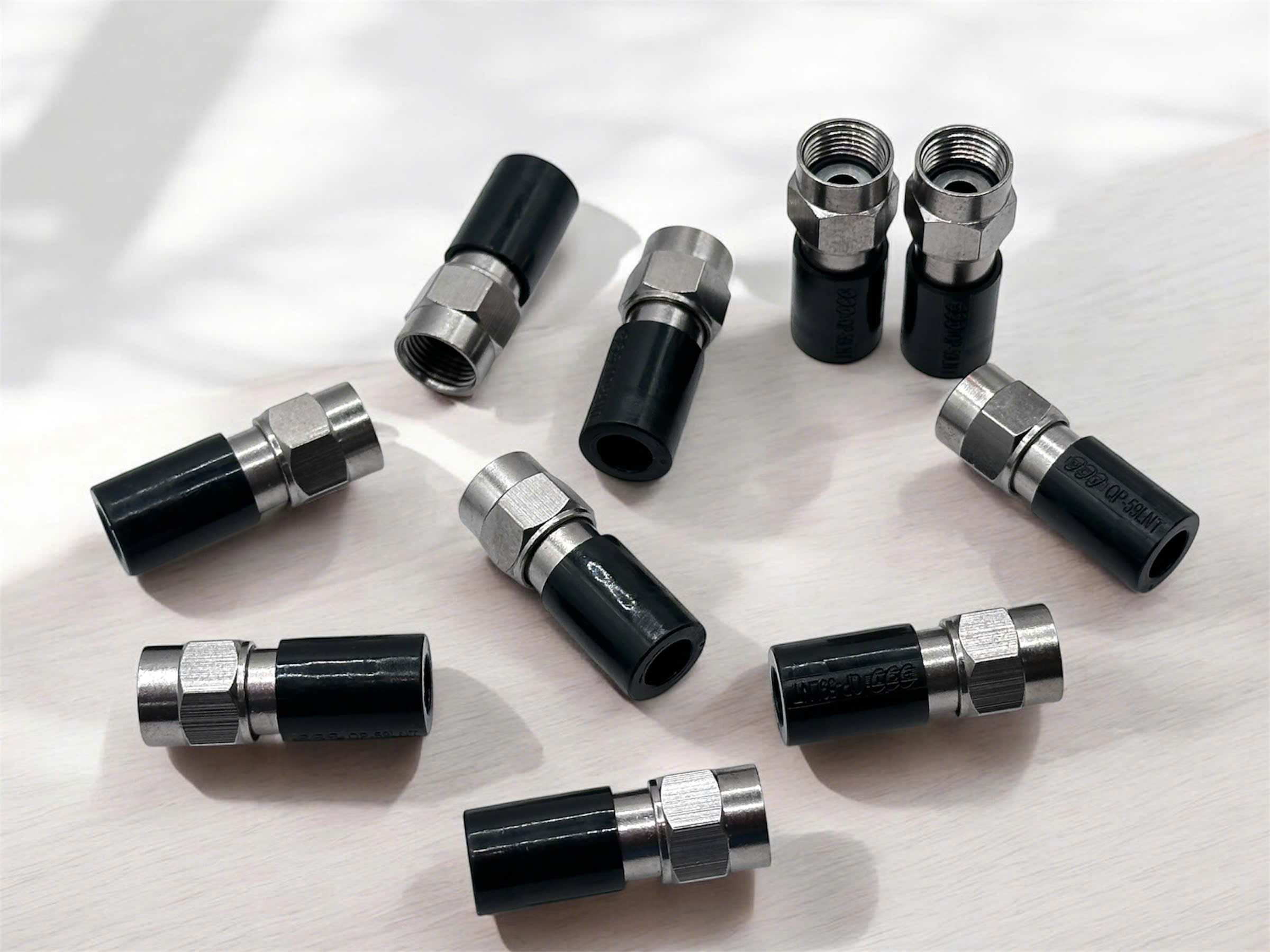

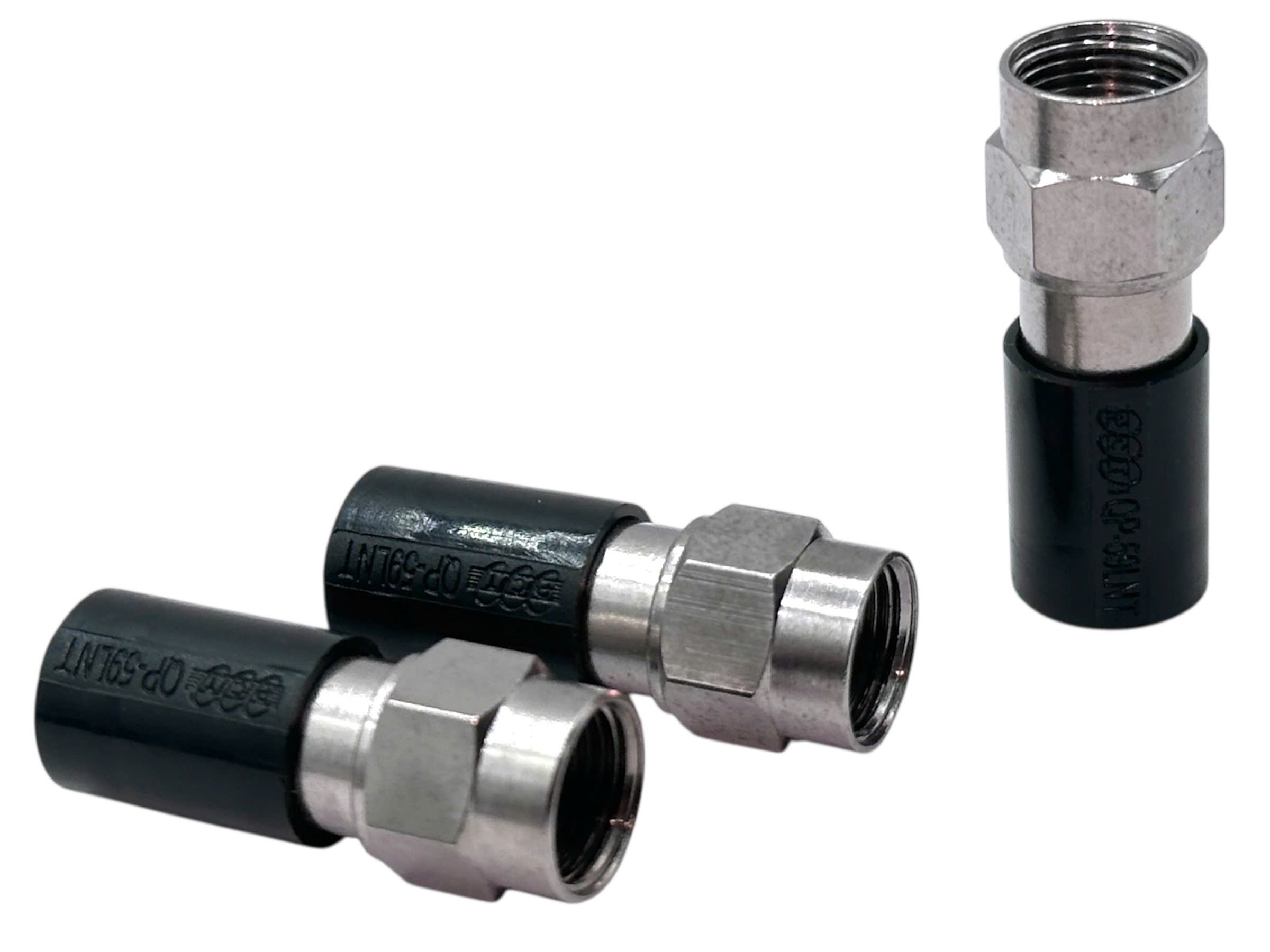

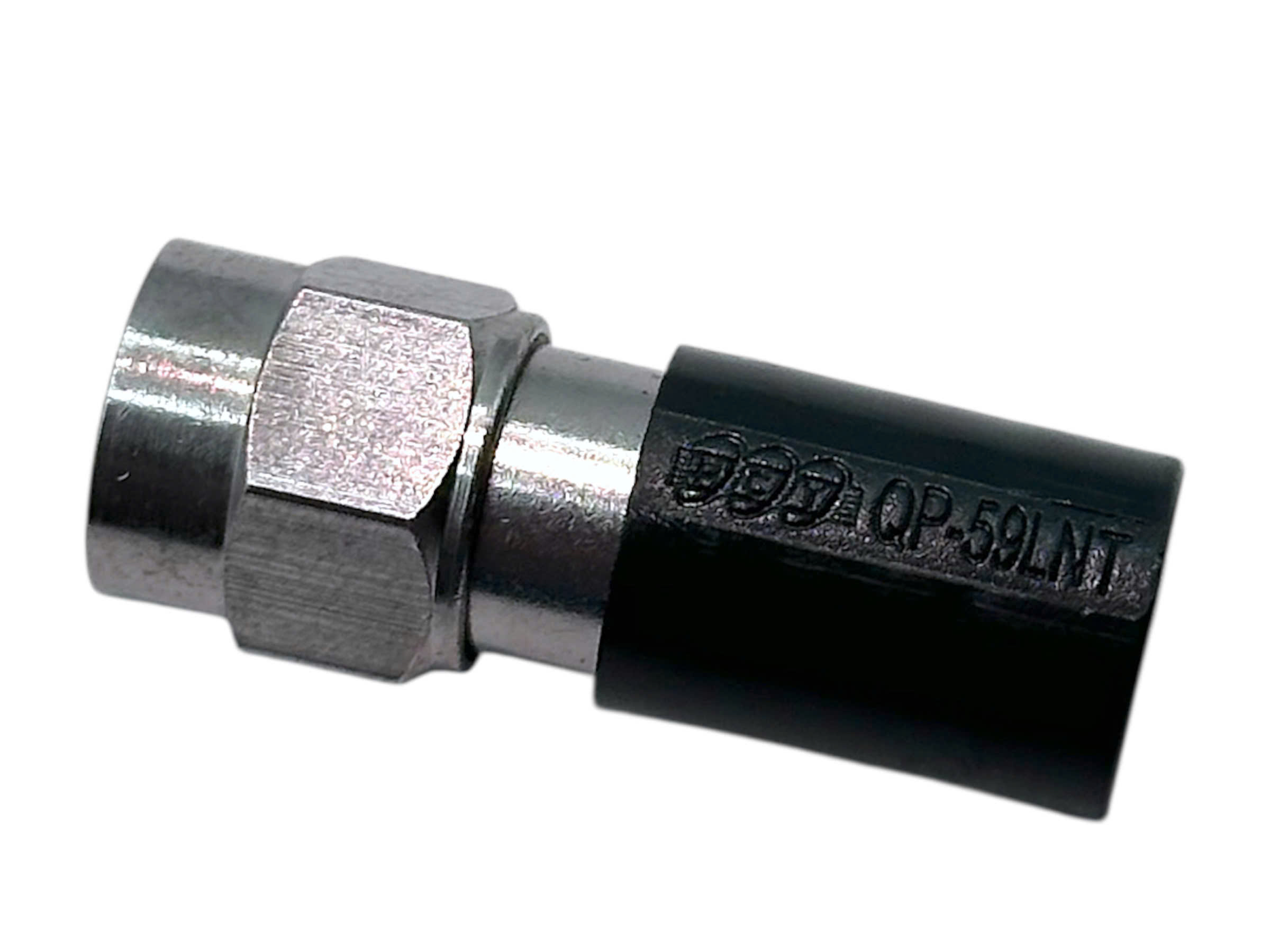

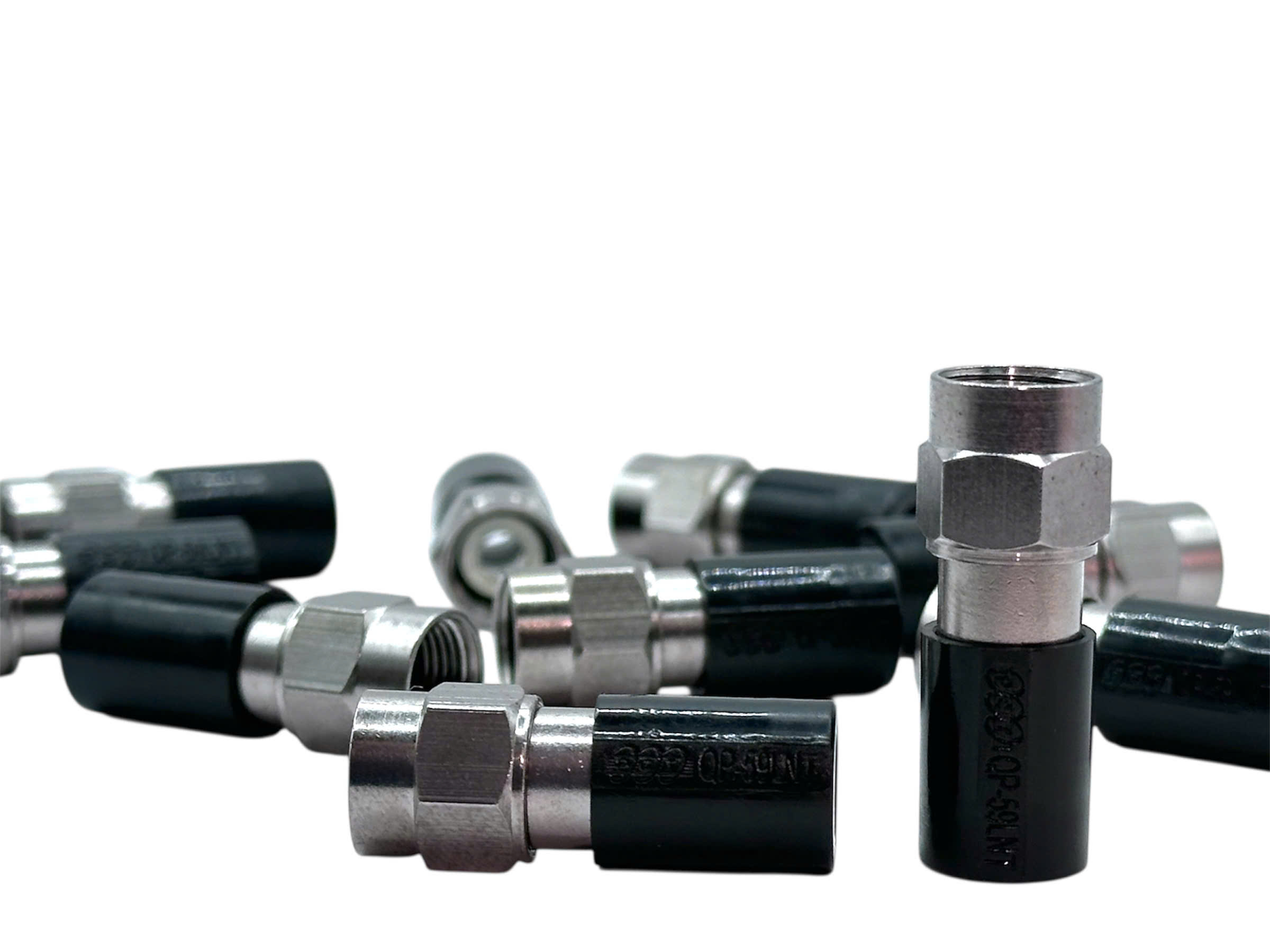

PCTQP59LNT is a next-generation postless compression connector designed for fast, tool-free installation on RG59 tri-shield cables. Featuring PCT’s patented lock washer and dual O-ring sealing system, it ensures superior RF performance, moisture protection, and cable retention. Ideal for both standard and messenger-type cables, this connector meets the latest bonding, grounding, and SCTE standards—making it a reliable solution for modern broadband networks.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
QP compression connector |
| Gender |
Male |
| Cable Compatibility |
RG-59 cable single tape and braid through tri-shield |
| Impedance |
75Ω |
| Construction Material |
Nickel / Tin Plated Brass and Plastic Shell |
| UV Degradation |
1000 hours, no cracking, swelling or brittleness |
| Weather Protection |
UV stabilized polymer |
| Tool Compatibility |
PCT-AIO-CT and PCT-RHXL-CT-AS, as well as many other manufacturers’ standard 21 mm compression stroke length toolsd |
| Application Use |
Complies with ANSI/SCTE 123 2011, ASTM, and Telcordia standards for high performance and reliability |
| Conformance |
RoHS, CE certified |
| Packaging |
Bulk packaged in a bag of 50 |
