OVERVIEW

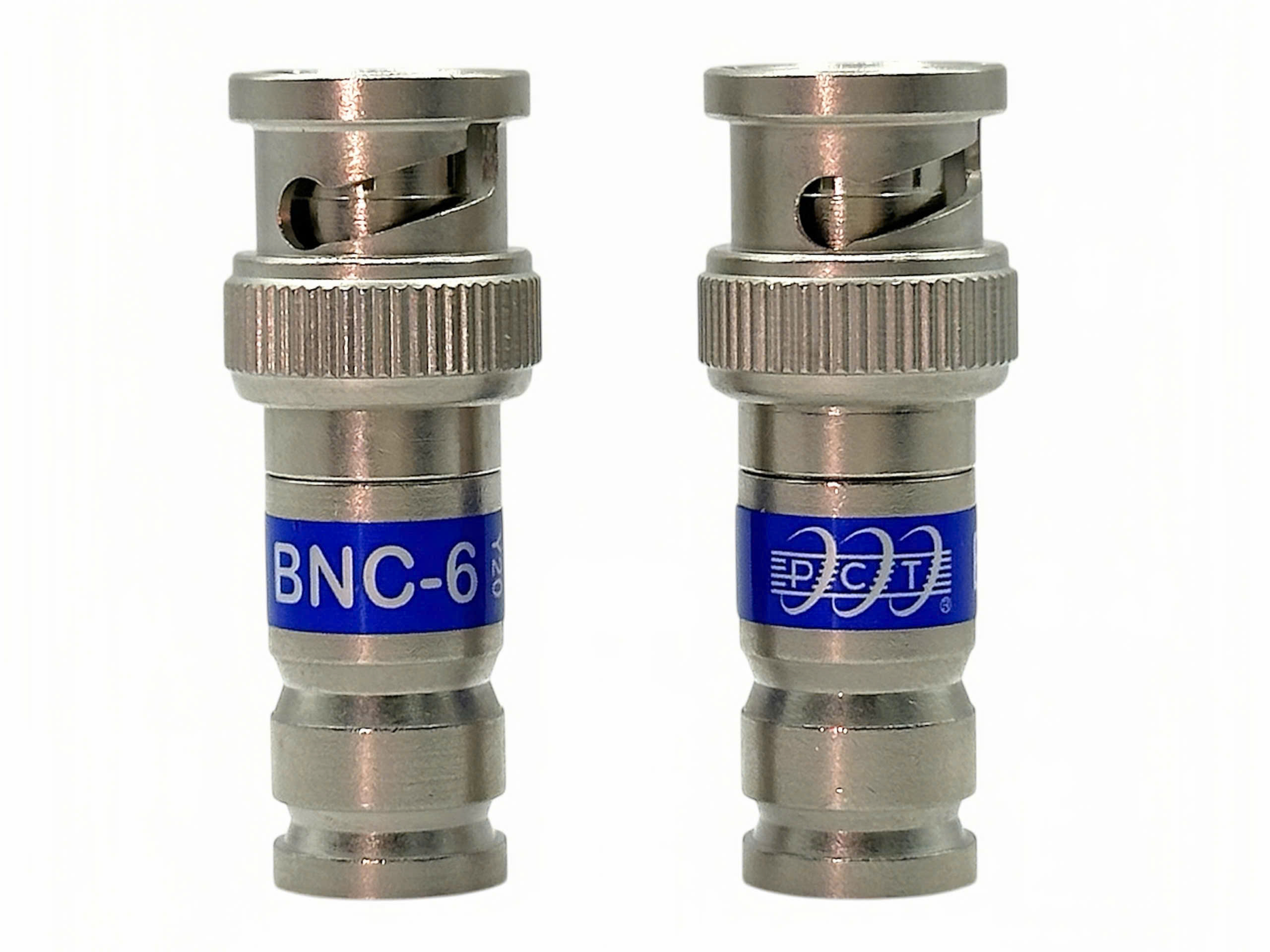

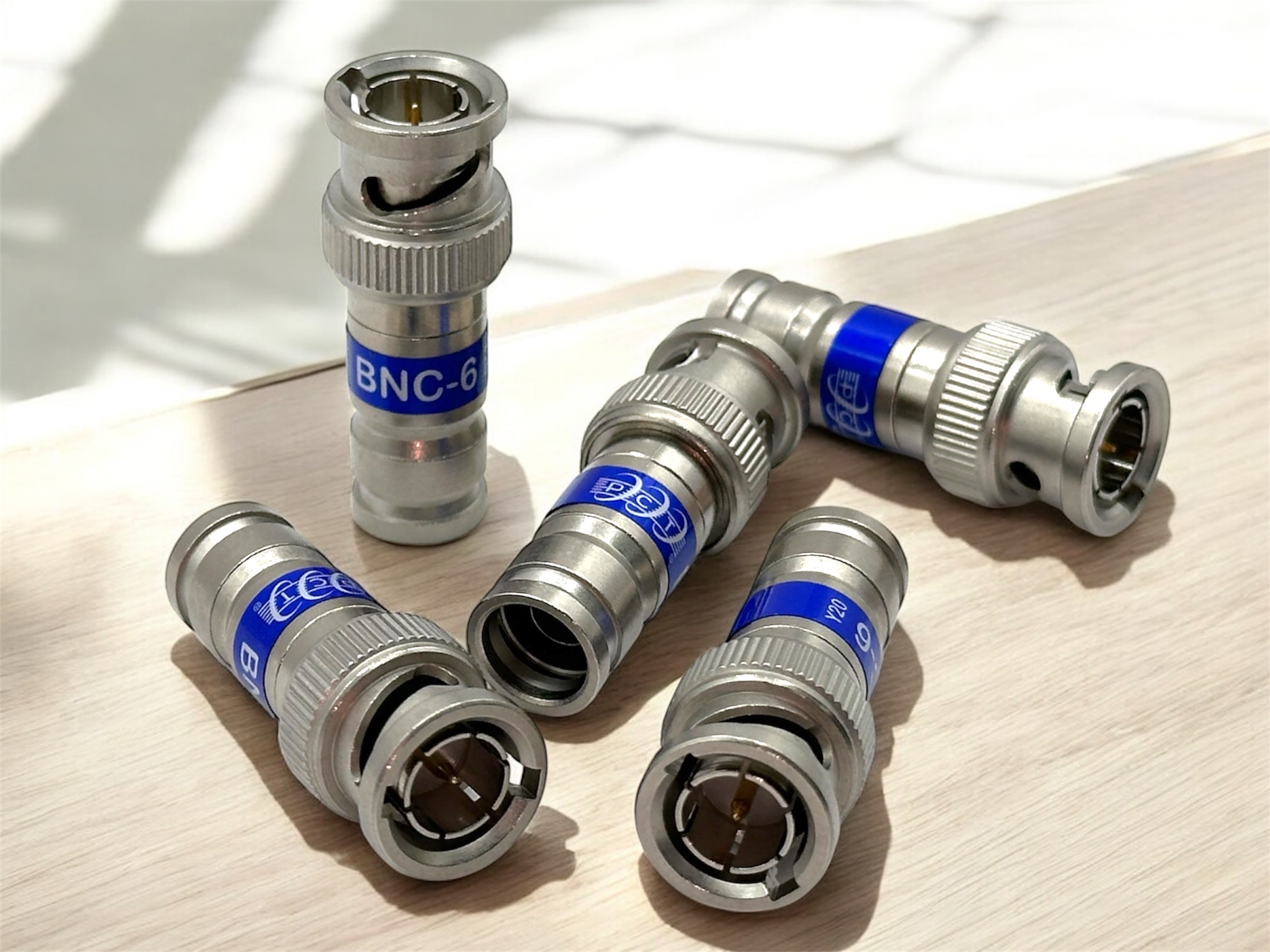

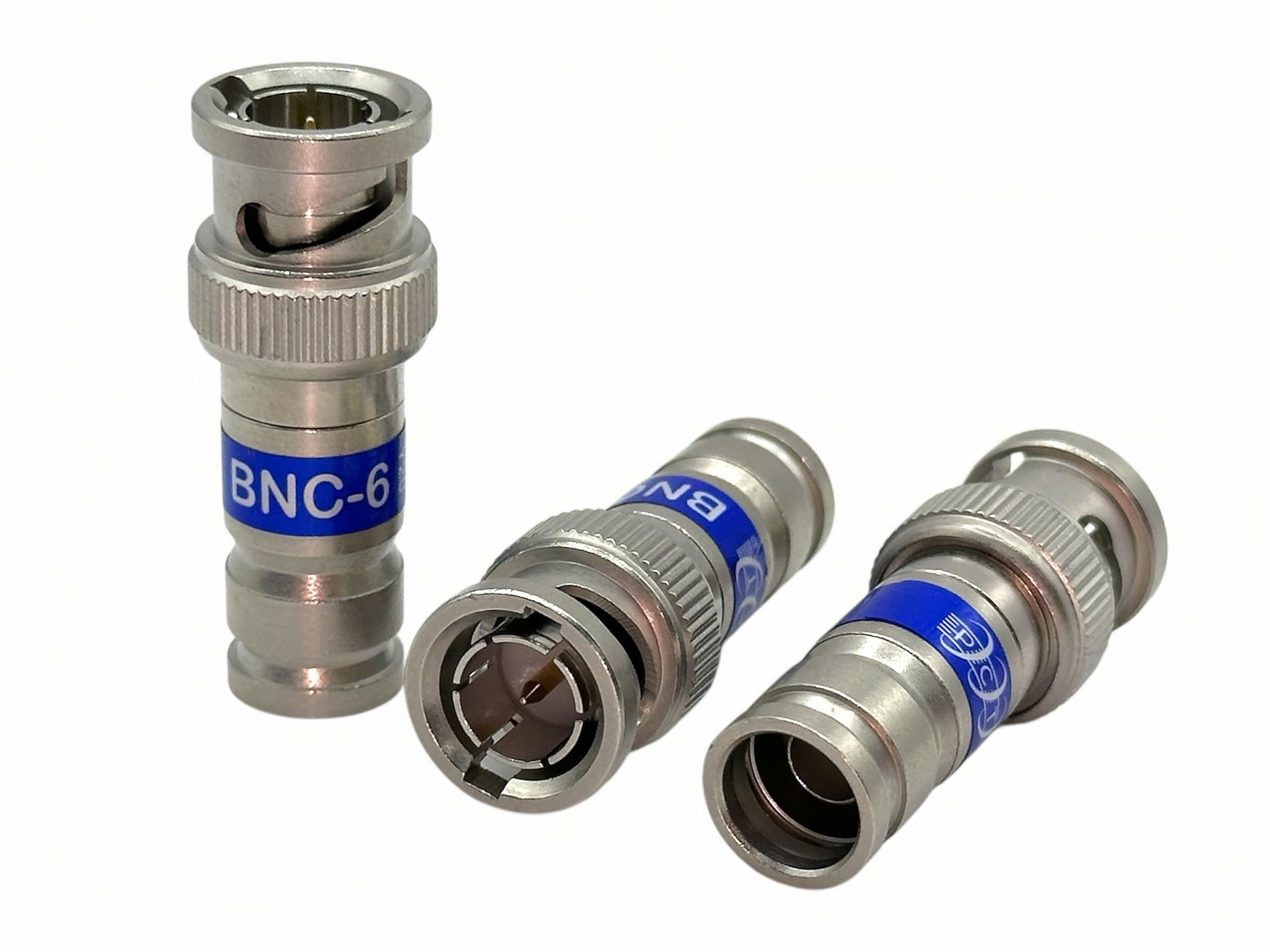

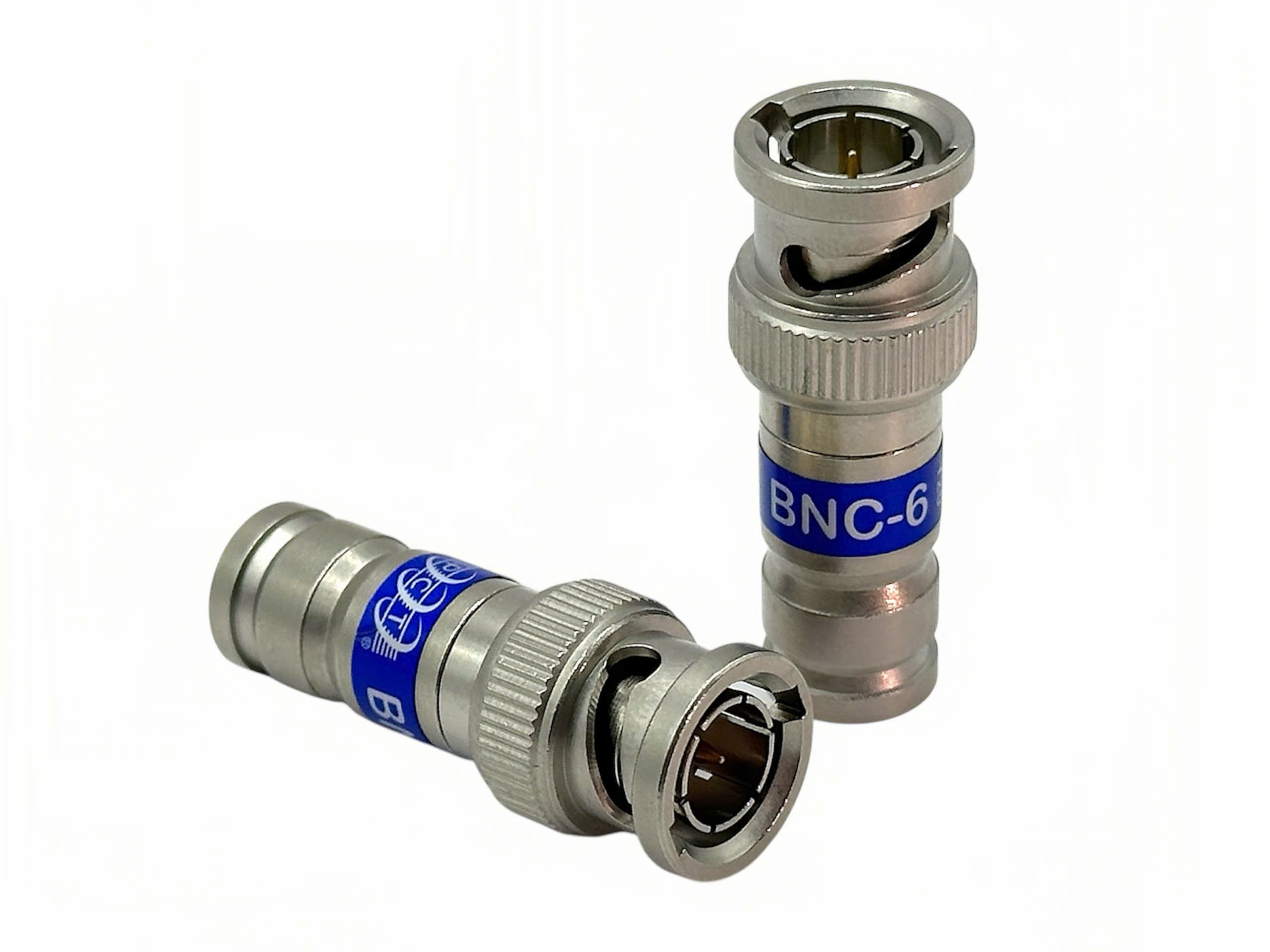

PCTBNC6 is a precision 75Ω BNC compression connector for RG-6 cables, delivering exceptional signal integrity up to 3GHz. Engineered for professional-grade video transmission with minimal loss, it ensures secure, durable connections ideal for CCTV, AV, broadcast, and test equipment applications.
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
BNC compression connector |
| Gender |
Male |
| Cable Compatibility |
RG-6 (60% to Quad Shield) |
| Impedance |
75Ω |
| Construction Material |
Nickel-plated brass design |
| Compression Mechanism |
Patented dual 360º compression rings for secure connection |
| Weather Protection |
Weather-sealed nut—no separate seals or thread protectors needed |
| Tool Compatibility |
PCT-AIO-CT |
| Application Use |
CCTV, measurement equipment, A/V installations |
| Packaging |
Bulk packaged in a bag of 50 |
