OVERVIEW
A1177TSBVM1P is a high-performance RG11 Triton Series Tri-Shield coaxial cable, designed for long-distance, high-frequency signal transmission in demanding aerial installations. With 77% braid coverage, 1PreP® bonded foil, and a rugged PVC jacket, it delivers superior shielding and weather resistance. An integrated galvanized steel messenger wire provides reliable support for outdoor overhead runs.
SPECIFICATIONS
| Feature |
Details |
| Cable Type |
RG11 Tri-Shield Coaxial Cable with Messenger |
| Braid Coverage |
77% Aluminum Braid |
| Packaging Type |

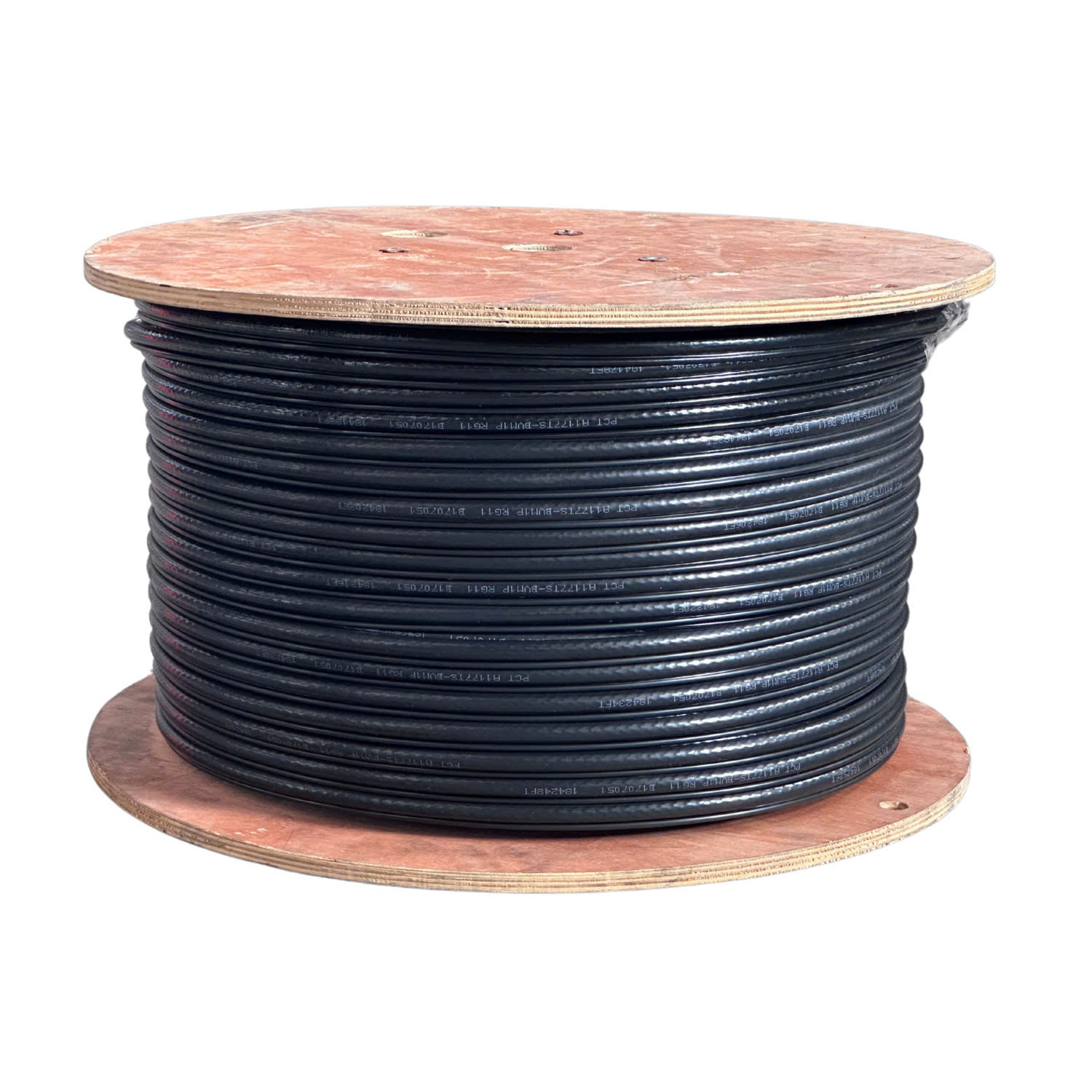

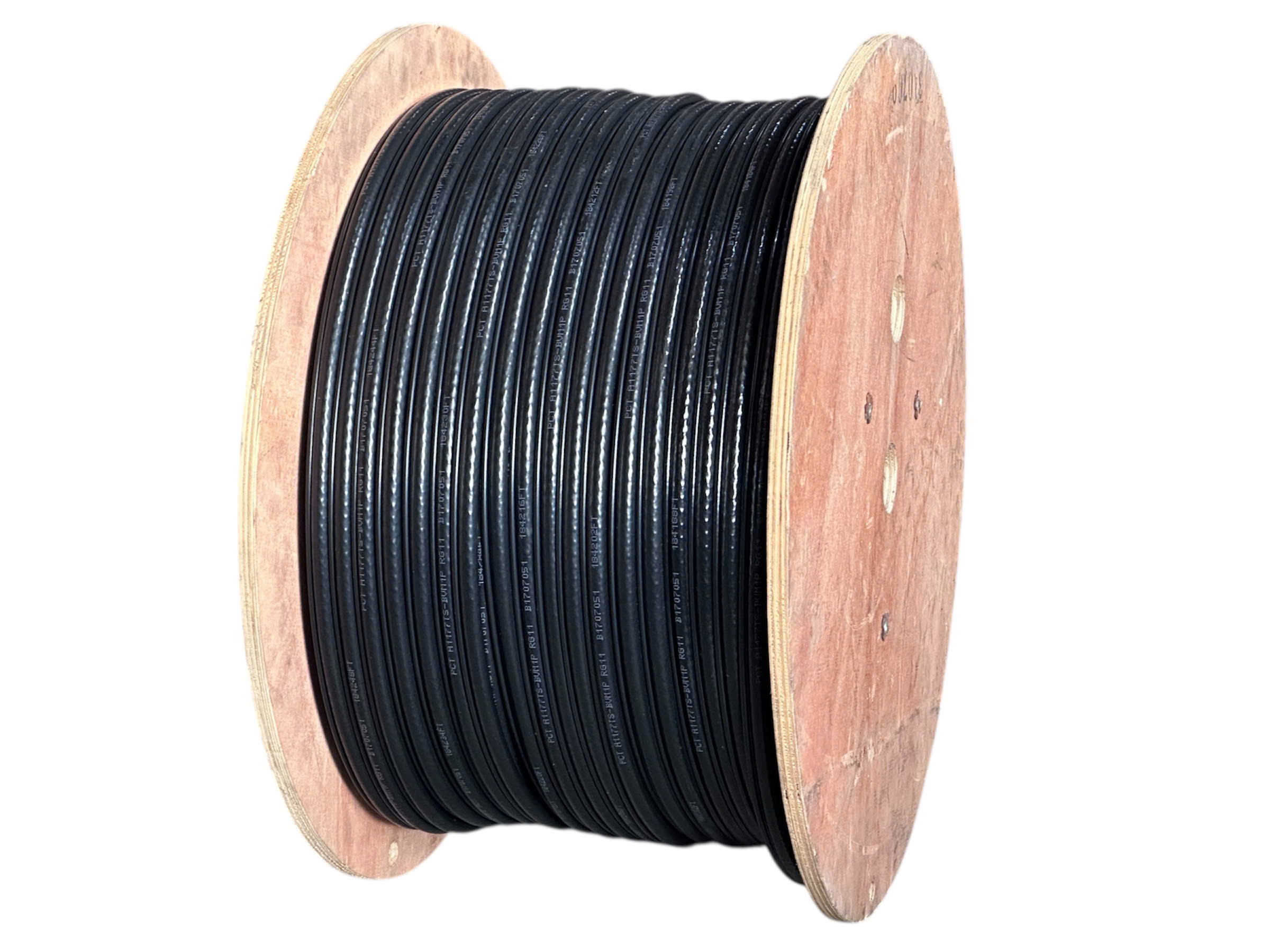

1000 ft Reel |
| Jacket Material |
PVC |
| Jacket Color |
Black |
Messenger Wire
|
0.072 in (1.83 mm) galvanized steel Minimum breaking strength: 346 lbf (156.9 kgf) |
| Shield Material |
Triple Shielding: Bonded Foil + 77% Aluminum Braid + Bonded 1PreP® Outer foil |
| Dielectric Material |
Foam PE |
| Inner Conductor |
Copper-Clad Steel (CCS) |
| Application |
Long-run aerial CATV, broadband trunk lines, satellite systems |
Standards Conformace
|
RoHS SCTE74 2011 |
