OVERVIEW
A11QS90BF is a robust RG11 Quad-Shield coaxial cable engineered for outdoor and underground broadband or CATV distribution. It features 90% aluminum braid coverage, dual foil layers, and a flooded polyethylene jacket for superior moisture resistance. The integrated galvanized steel messenger wire ensures mechanical strength for aerial installations, making this cable ideal for long-distance, high-frequency applications in harsh environments.
SPECIFICATIONS
| Feature |
Details |
| Cable Type |
RG11 Quad-Shield Coaxial Cable |
| Braid Coverage |
90% Aluminum Braid |
| Packaging Type |

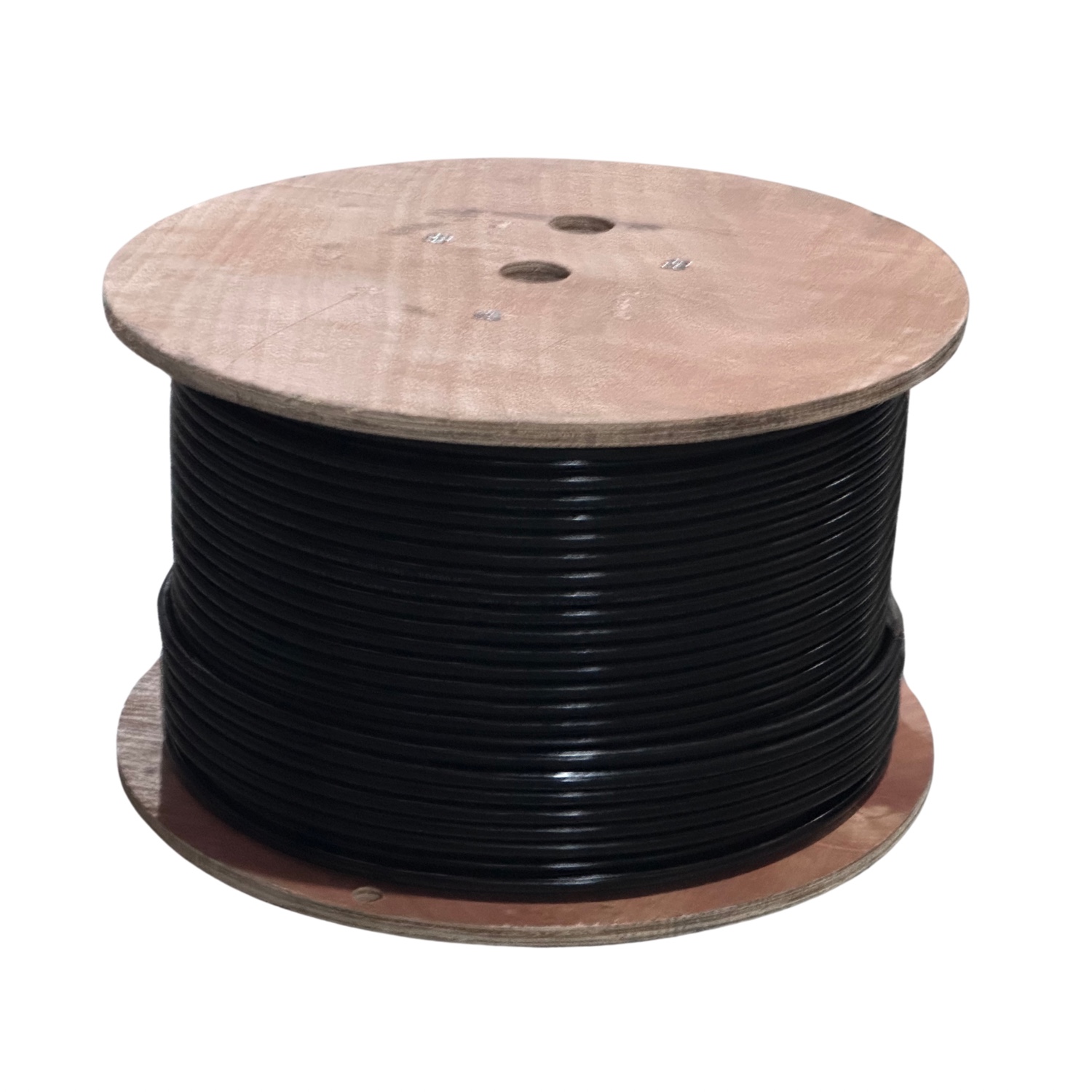

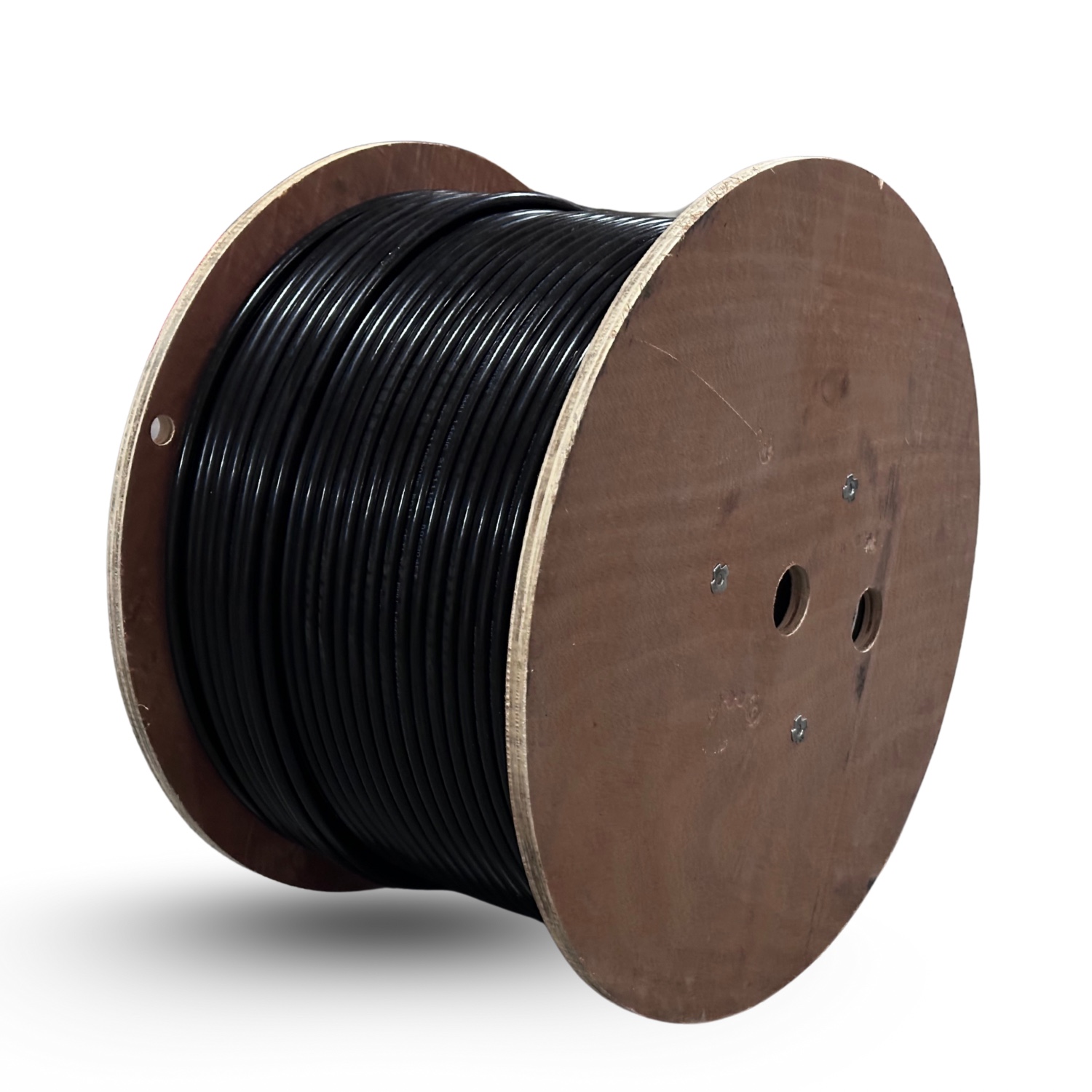

1000 ft Reel |
| Jacket Material |
PE |
| Jacket Color |
Black |
Messenger Wire
|
0.072 in (1.83 mm) galvanized steel Minimum breaking strength: 346 lbf (156.9 kgf) |
| Other functions |
Flooded |
| Shield Material |
Quad Shielding – Two aluminum foil layers and two aluminum braid layers |
| Dielectric Material |
Foam PE |
| Inner Conductor |
Copper-Clad Steel (CCS) |
| Application |
Outdoor aerial/burial CATV, broadband, and trunk signal transmission |
Standards Conformace
|
RoHS UL/ETL Listings SCTE 74 2011 NEC 830 BMU |
